PRIMEDISTOM® tracheostomy tubes with Cuff

PRIMEDISTOM® cuffed tracheostomy tubes are made of medical-grade polymer. They are pleasantly flexible and ensure high wearing comfort. The material used is thermo-sensitive and reaches its ideal properties at body temperature.

The high volume low-pressure cuff can be filled through a one-way valve and securely seals the cannula to the tracheal wall. This prevents an accidental aspiration of secretions. The soft cuff fits perfectly into the trachea and ensures a reliable seal, even with a low inflation pressure. The cuff‘s pilot line is integrated in the outer cannula, achieving a rounded and smooth outer shape. This prevents additional irritation of the mucous membranes. The key features of this cannula are its easy handling and comfortable use.

Sieved PRIMEDISTOM® tracheostomy tubes with Cuff are used after a tracheostomy with a complete or partially retained larynx and enable the user to speak. They come with a silicone speaking valve which can simply be attached to the fenestrated inner cannula without connector. In the valve, a flap opens on inspiration allowing air to flow in. The exhaled airflow causes the valve flap to close, thereby enabling phonation.

The cuffed PRIMEDISTOM® tracheostomy tubes with subglottic suction function features an integrated suction line for secretion suctioning above the cuff.

PRIMEDISTOM® cuffed tracheostomy tubes are single-patient products, available in four versions, also in overlength.

Primedistom® Trachealkanülen mit Cuff

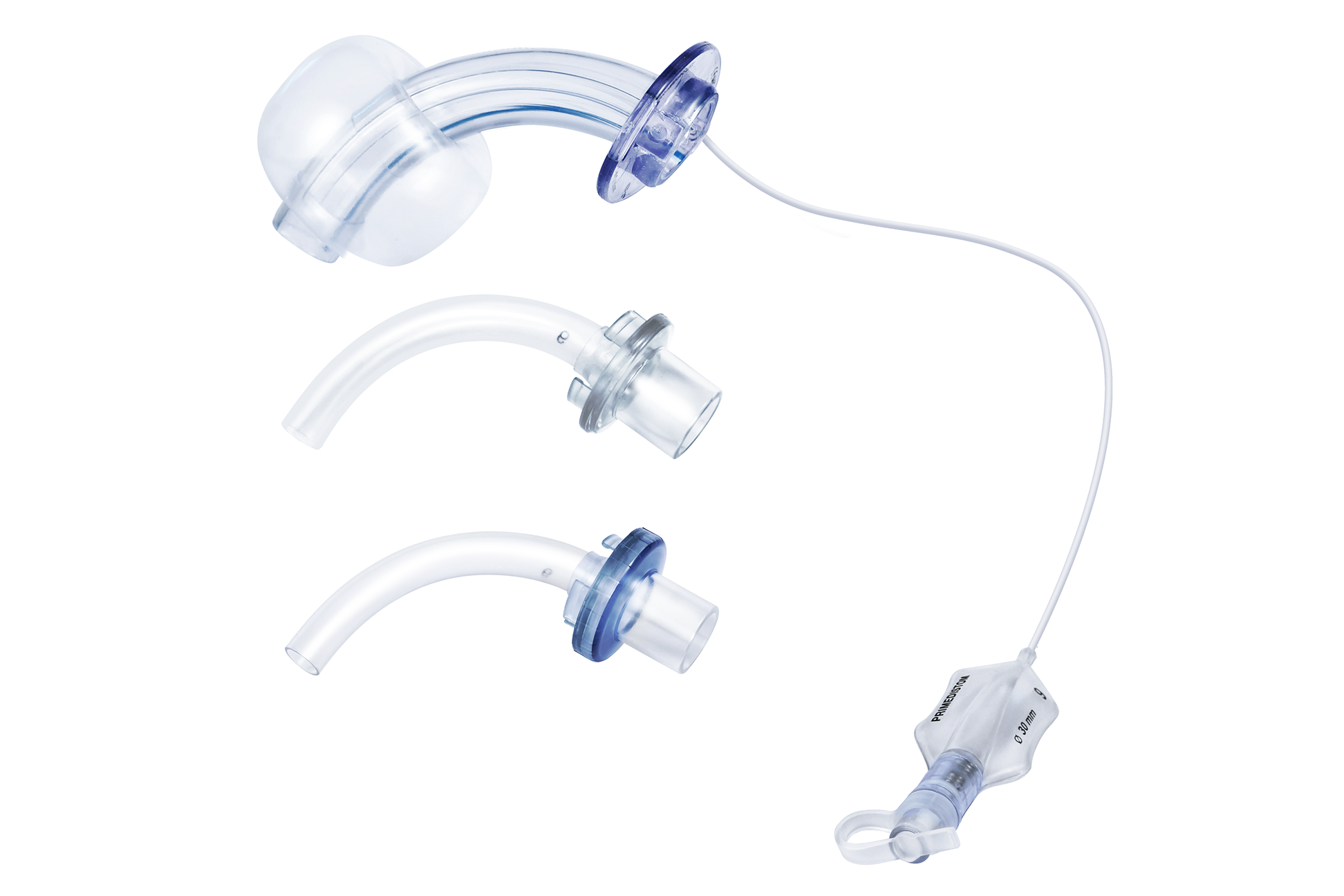

PRIMEDICUFF®

PRIMEDICUFF® Primedistom® Trachealkanülen mit Cuff

Standard version

PRIMEDICUFF® Primedistom® Trachealkanülen mit Cuff

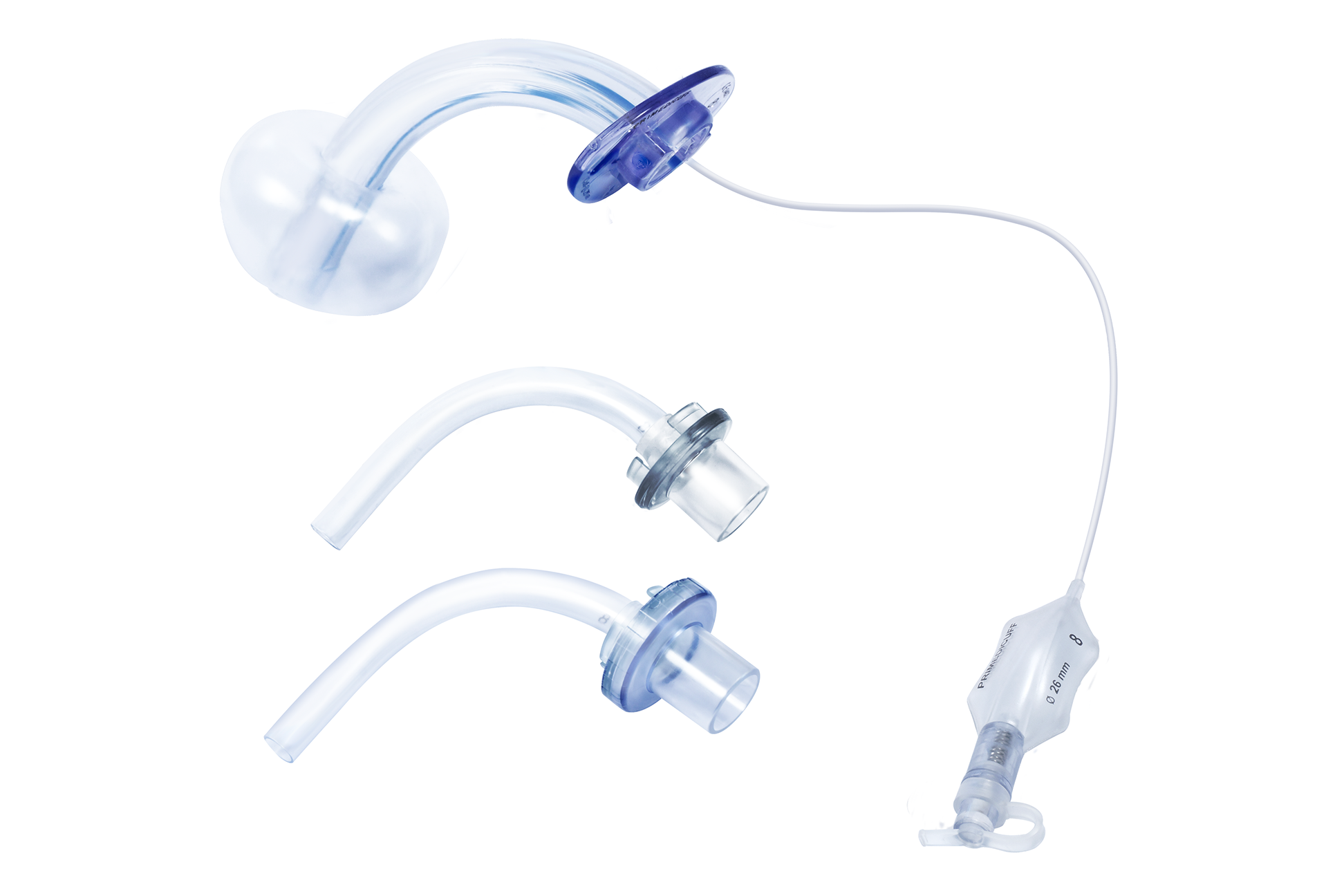

Long version

Product features:

  • Outer cannula with low-pressure cuff and integrated X-ray contrast line for position control
  • With inner cannula system
  • 1 inner cannula with 15 mm connector
  • 1 inner cannula with swivelling 15 mm connector (during ventilation attach to outer cannula with the help of the included clip adapter to prevent loosening or displacement of the inner cannula)
  • Secure fixing of the inner cannula to outer cannula with Easy-Click-System
  • Conical form facilitates insertion
  • Including neck strap and clip adapter
  • Material: PVC, latex-free, DEHP-free, thermo-sensitive

Indication

  • Tracheostomy/Laryngectomy
  • Aspiration
  • Ventilation
  • Tracheal stenoses/Granula (for long version)

Including:

Primedistom® Trachealkanülen mit Cuff

PRIMEDIPHON®

PRIMEDIPHON® Primedistom® Trachealkanülen mit Cuff

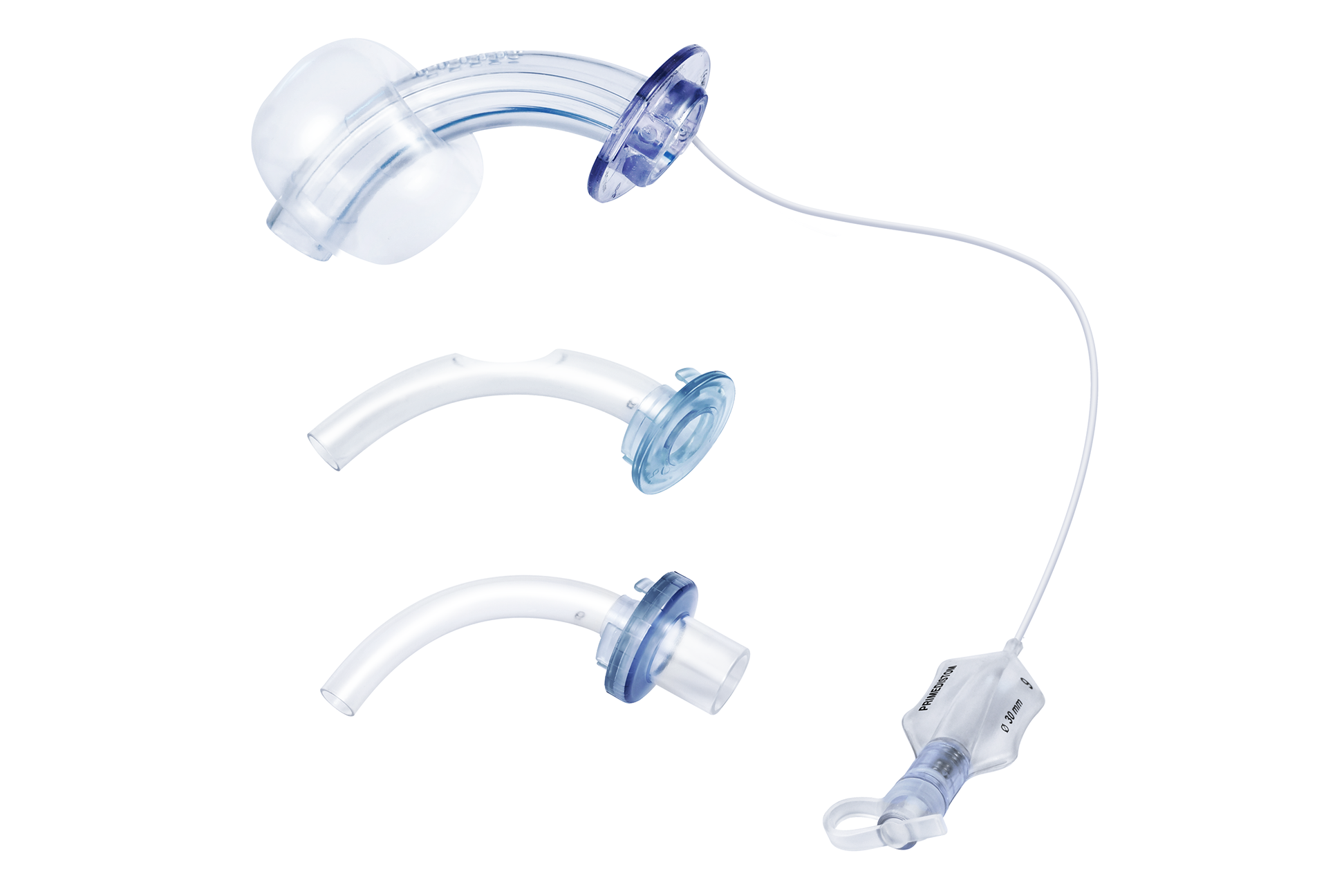

Standard version

PRIMEDIPHON® Primedistom® Trachealkanülen mit Cuff

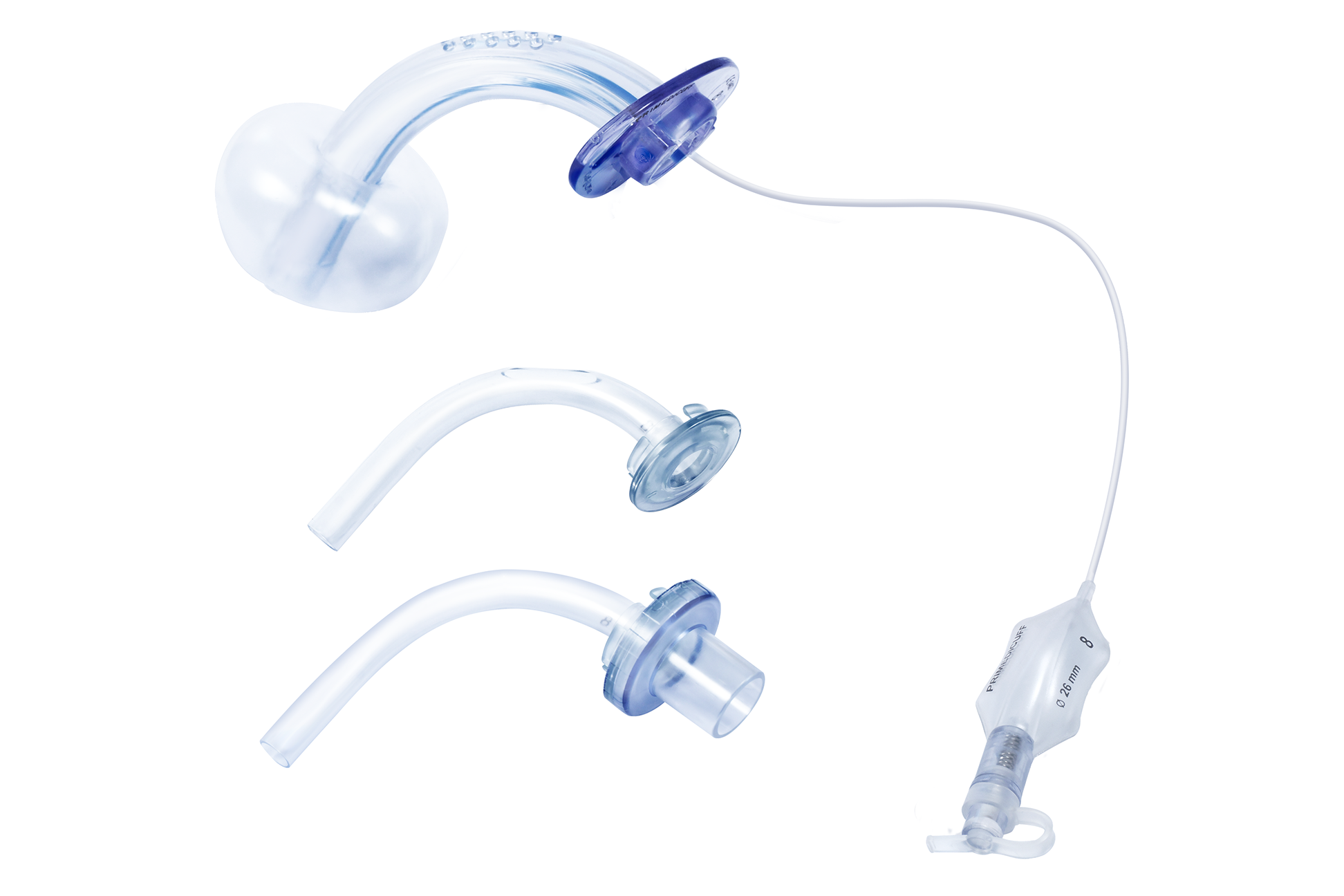

Long version

Product features:

  • Sieved outer cannula with low-pressure cuff and integrated X-ray contrast line for position control
  • With inner cannula system
  • 1 fenestrated inner cannula without connector (compatible with silicone speaking valve)
  • 1 inner cannula with swivelling 15 mm connector (during ventilation attach to outer cannula with the help of the included clip adapter to prevent loosening or displacement of the inner cannula)
  • Secure fixing of the inner cannula to outer cannula with Easy-Click-System
  • Conical form facilitates insertion

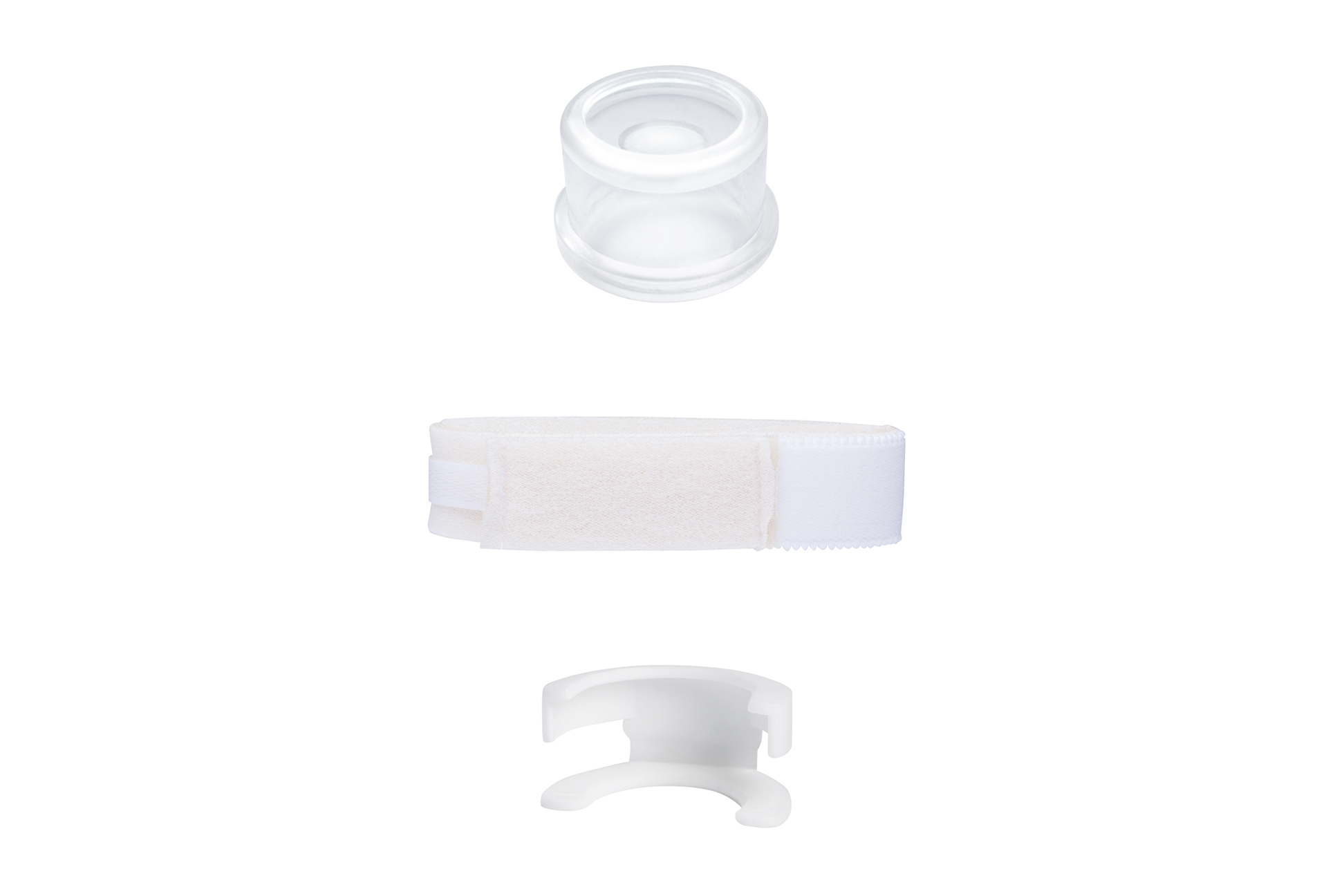

  • Including neck strap, clip adapter, decannulation plug, silicone speaking valve
  • Material: PVC, latex-free, DEHP-free, thermo-sensitive

Indication

  • Tracheostomy
  • Phonation
  • Ventilation
  • Tracheal stenoses/Granula (for long version)

Including:

PRIMEDIPHON® Primedistom® Trachealkanülen mit Cuff

Primedistom® Trachealkanülen mit Cuff

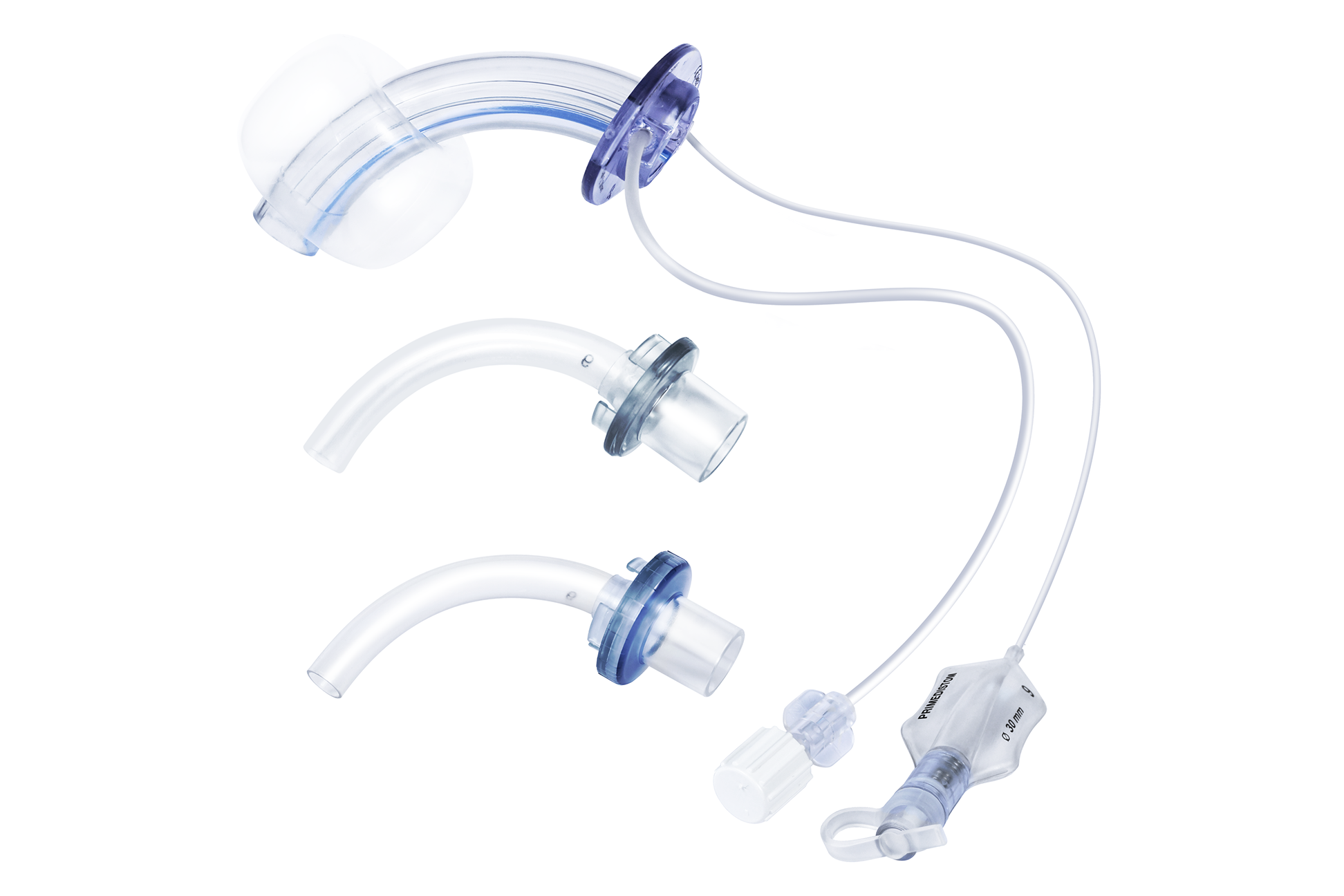

PRIMEDISUCTION®

PRIMEDISUCTION® Primedistom® Trachealkanülen mit Cuff

Standard version

PRIMEDISUCTION® Primedistom® Trachealkanülen mit Cuff

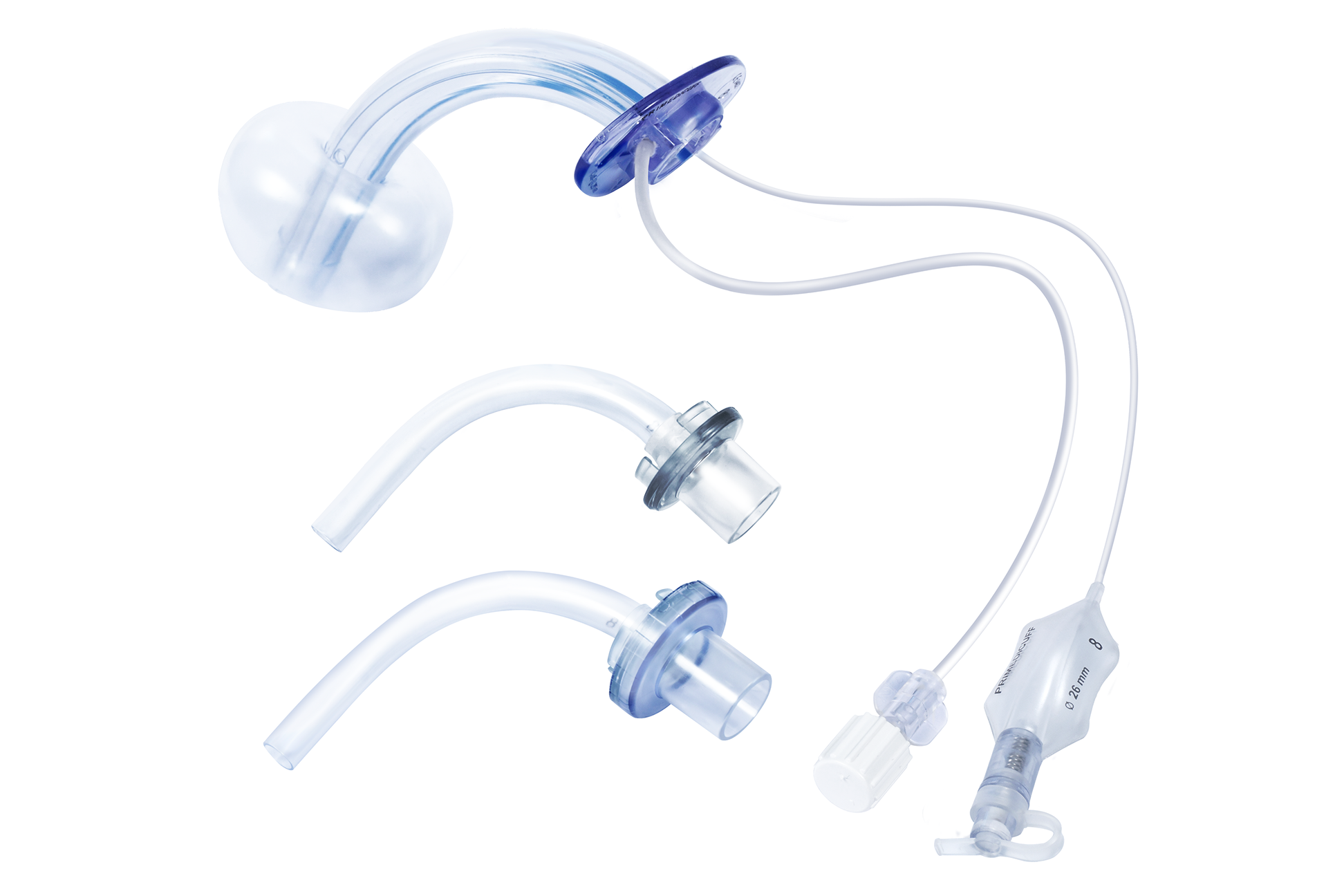

Long version

Product features:

  • Outer cannula with low-pressure cuff, integrated X-ray contrast line for position control and subglottic suction function ( features an integrated suction line for on demand secretion suctioning above the cuff)
  • With inner cannula system
  • 1 inner cannula with 15 mm connector
  • 1 inner cannula with swivelling 15 mm connector (during ventilation attach to outer cannula with the help of the included clip adapter to prevent loosening or displacement of the inner cannula)
  • Secure fixing of the inner cannula to outer cannula with Easy-Click-System
  • Conical form facilitates insertion
  • Including neck strap, clip adapter and funnel connector
  • Material: PVC, latex-free, DEHP-free, thermo-sensitive

Indication

  • Tracheostomy/Laryngectomy
  • Aspiration
  • Ventilation
  • Tracheal stenoses/Granula (for long version)

Including:

Primedistom® Trachealkanülen mit Cuff

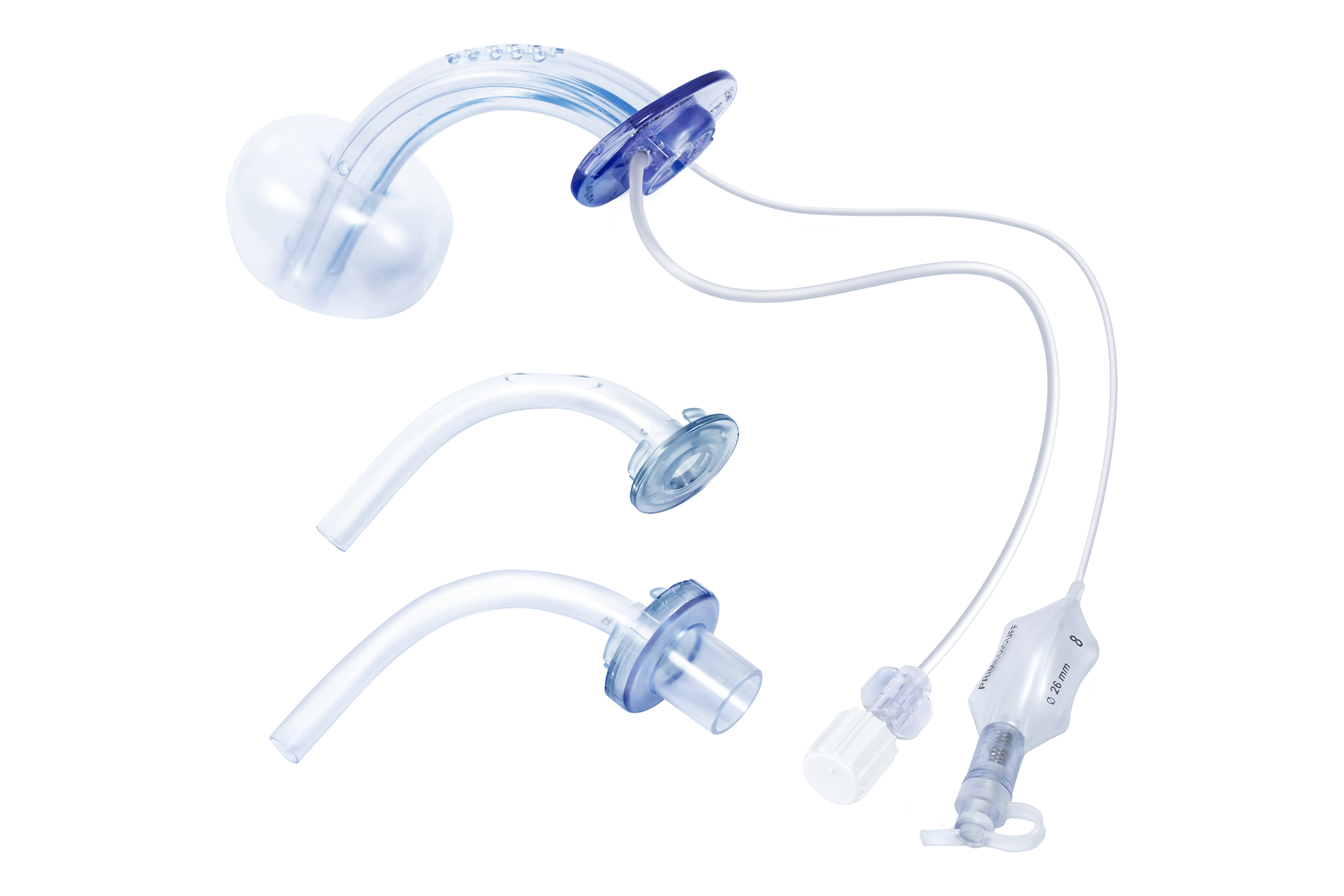

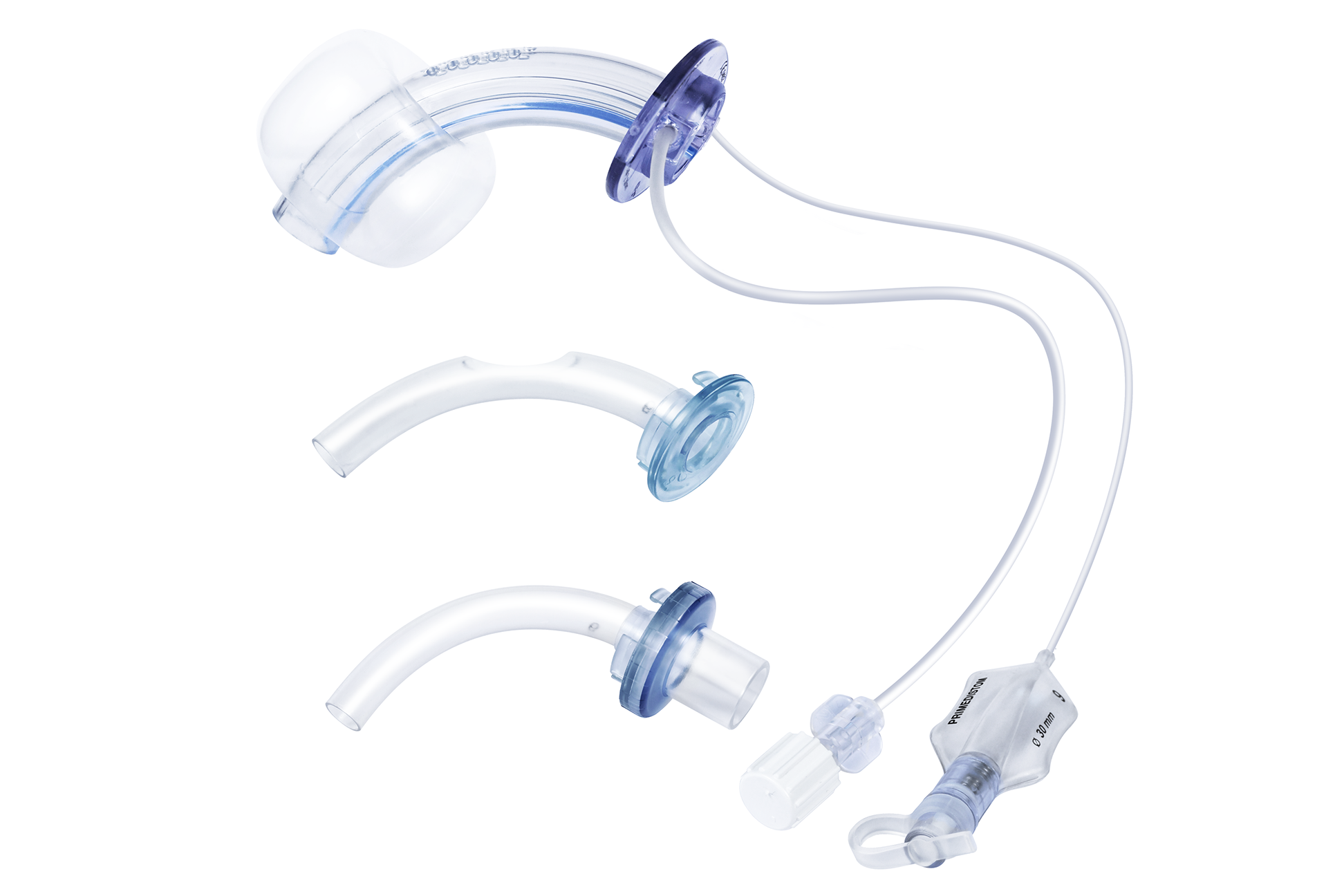

PRIMEDICOMB®

PRIMEDICOMP® Primedistom® Trachealkanülen mit Cuff

Standard version

PRIMEDICOMP® Primedistom® Trachealkanülen mit Cuff

Long version

Product features:

  • Sieved outer cannula with low-pressure cuff , suction function (features an integrated  suction line for on demand subglottic secretion suctioning above the cuff) and integrated X-ray contrast line for position control
  • With inner cannula system
  • 1 fenestrated inner cannula without connector (compatible with silicone speaking valve)
  • 1 inner cannula with swivelling 15 mm connector (during ventilation attach to outer cannula with the help of the included clip adapter to prevent loosening or displacement of the inner cannula)
  • Secure fixing of the inner cannula to outer cannula with Easy-Click-System
  • Conical form facilitates insertion
  • Including neck strap, clip adapter, funnel connector, decannulation plug, silicone speaking valve
  • Material: PVC, latex-free, DEHP-free, thermo-sensitive

Indication

  • Tracheostomy
  • Phonation
  • Ventilation
  • Tracheal stenoses/Granula (for long version)

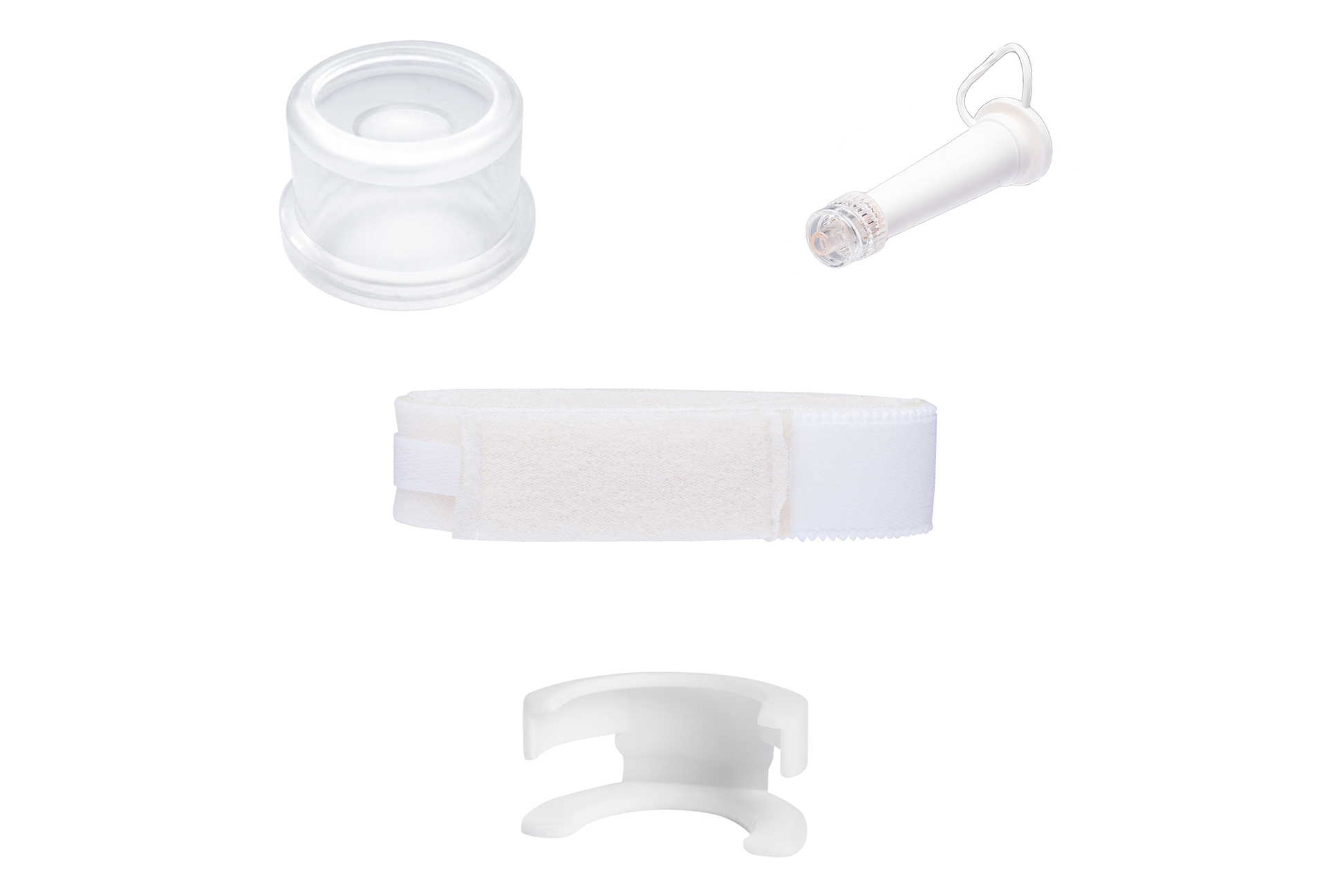

Including:

PRIMEDICOMP® Primedistom® Trachealkanülen mit Cuff

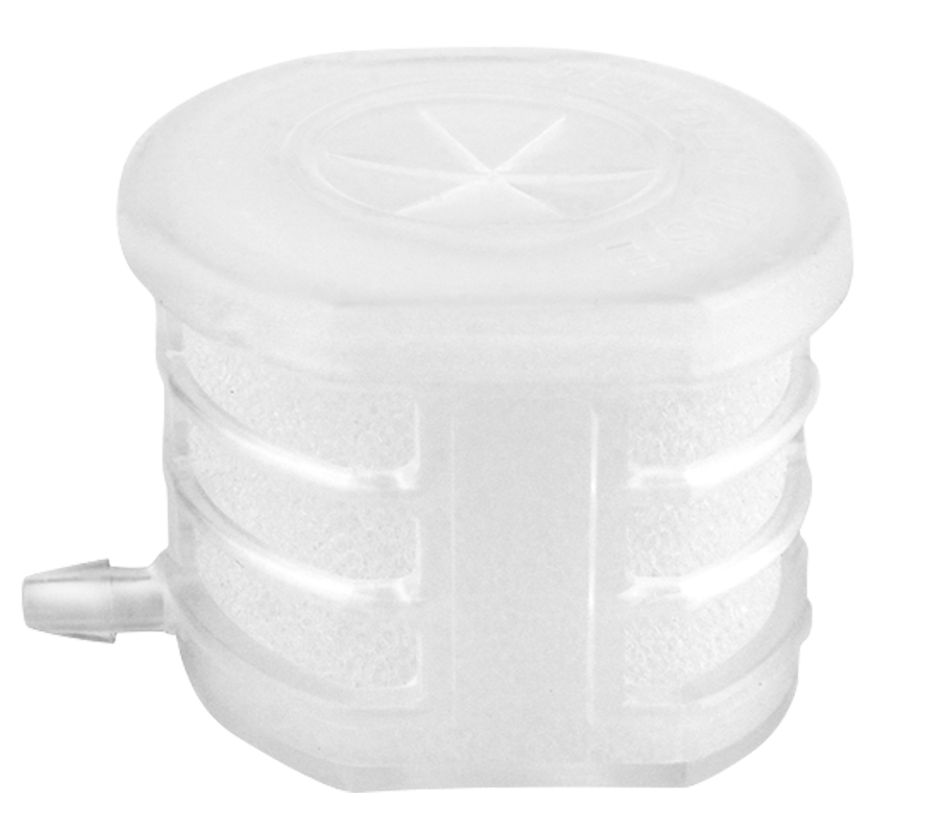

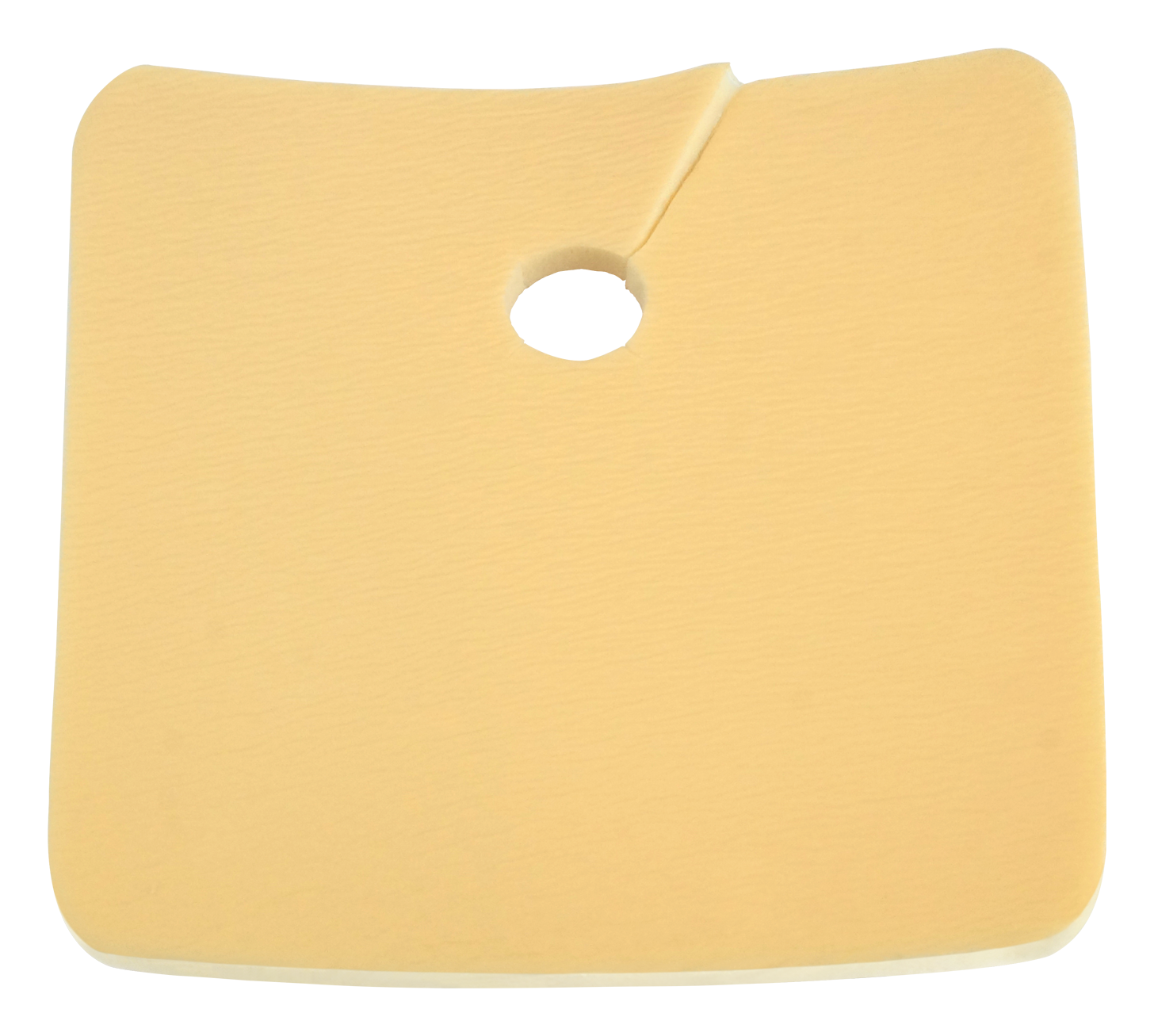

OPTIONAL ACCESSORIES
