OPTIMA tracheostomy Tubes
All types of OPTIMA tracheostomy tubes are characterized by a transparent outer cannula with a firmly attached universal 15 mm ISO connector and flexible thermosensitive material properties which ensure good wear properties.
The tubes are lightweight and the inserting and removing of the inner cannula is simple. The inner cannula can be fitted into the 15 mm connector of the outer cannula and is easy to grip via lateral grooves.
The soft flange has lateral eyelets for fixing the inserted tube with a neck strap.
The OPTIMA series comprises a complete range of tracheostomy tubes for tracheostomized patients. They are available in five adult sizes 6-10, as uncuffed or cuffed types, with and without phonation or subglottic suction function.

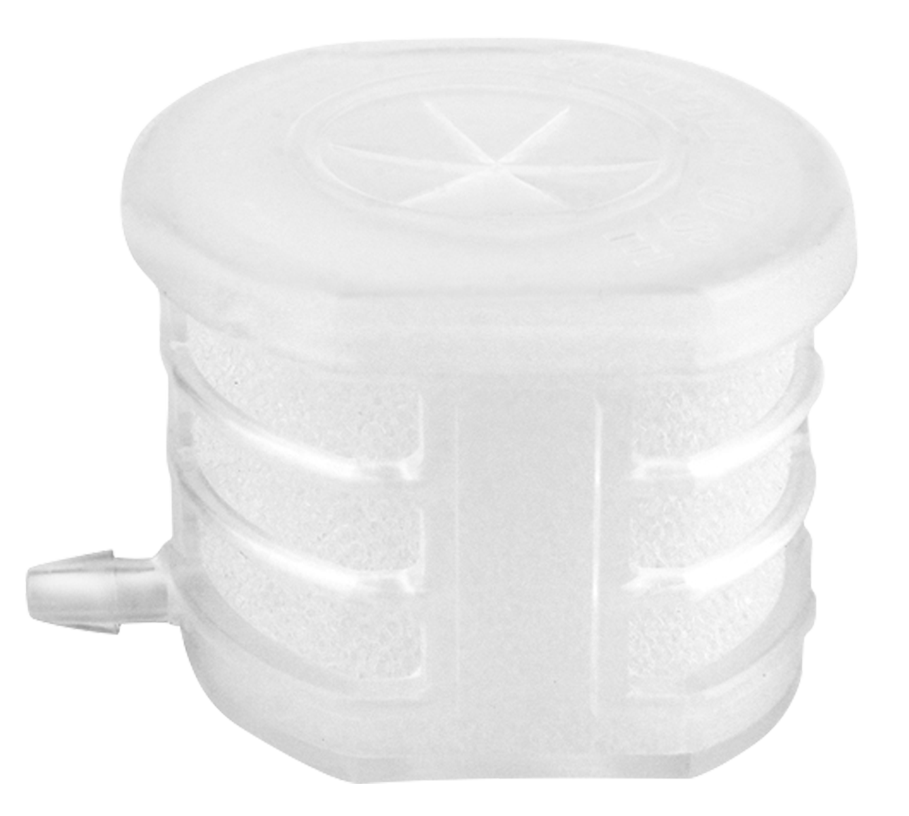

With or without inner cannula in place, the built-in 15 mm ISO connector of the outer cannula allows the attachment of accessories (heat and moisture exchangers (HMEs) and speaking valves) and can also be used for attaching ventilators (in case of cuffed tubes).

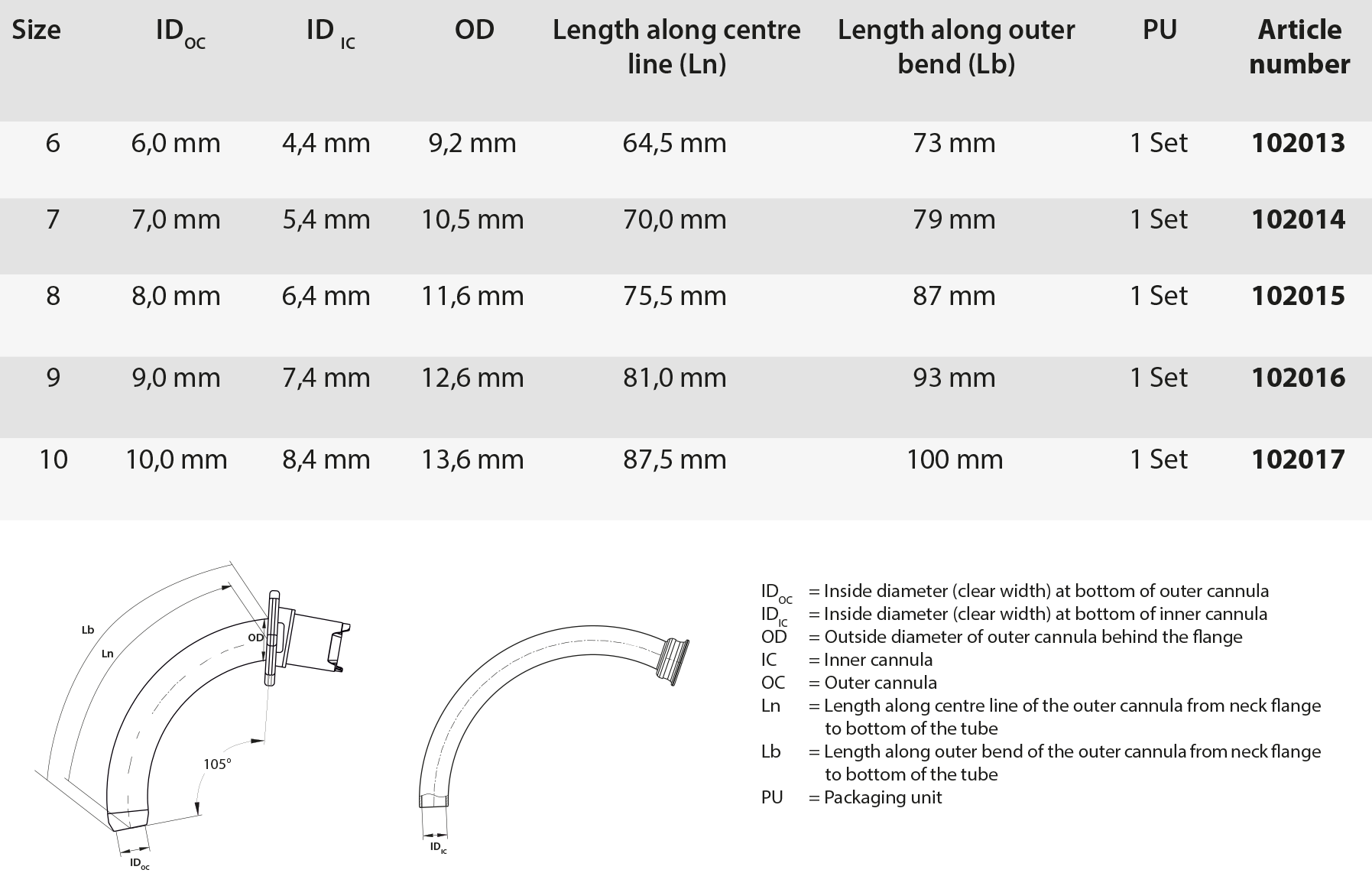

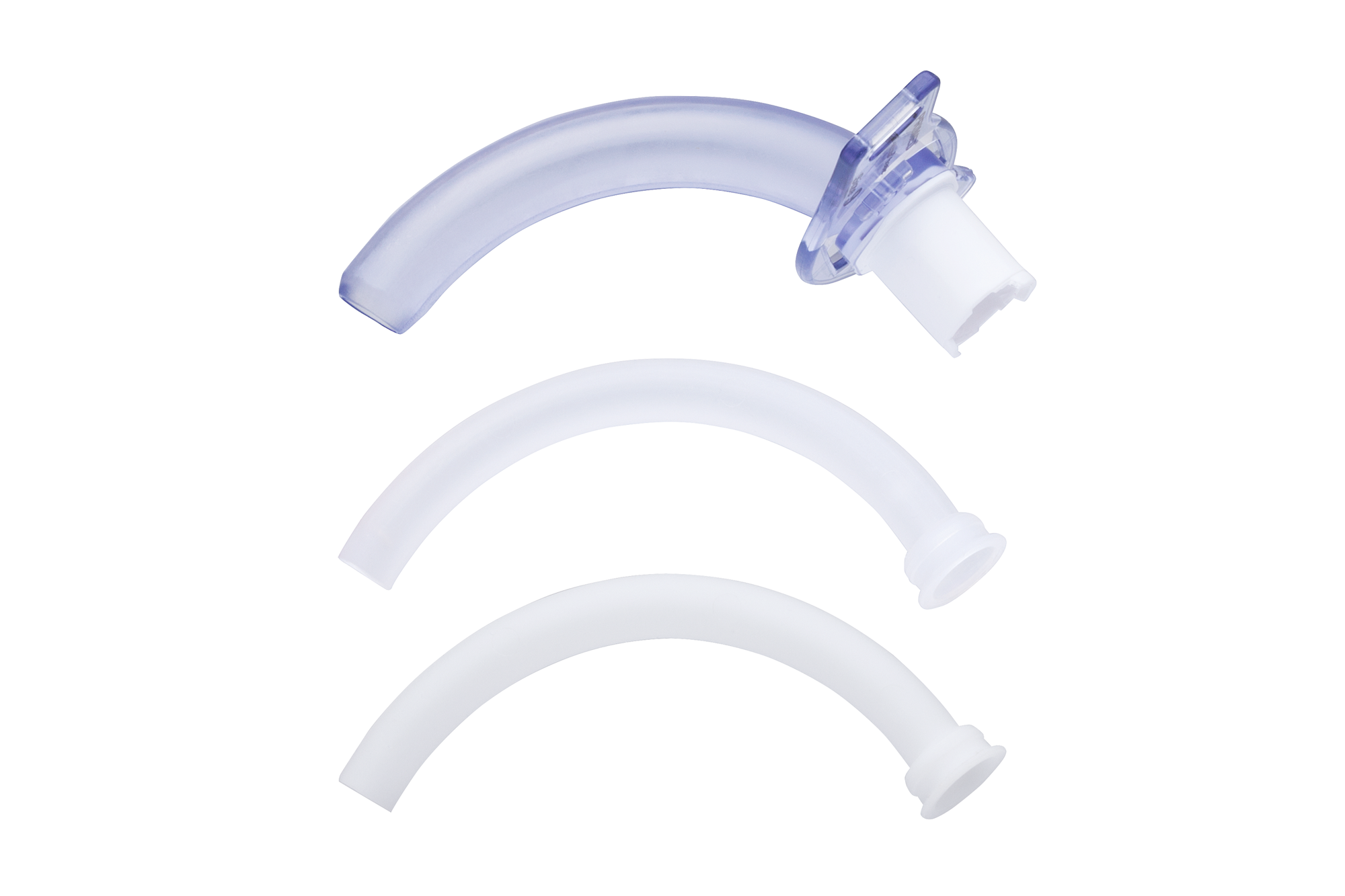

BASIC
Product features:
- Outer cannula with 15 mm connector
- With inner cannula system
- 1 transparent inner cannula for improved secretion assessment
- 1 white inner cannula made of radiopaque material for position control
- Including obturator and neck strap
- Material: PVC, latex-free, DEHP-free
Indication
- Tracheostomy/Laryngectomy
- Radiatino/MRI

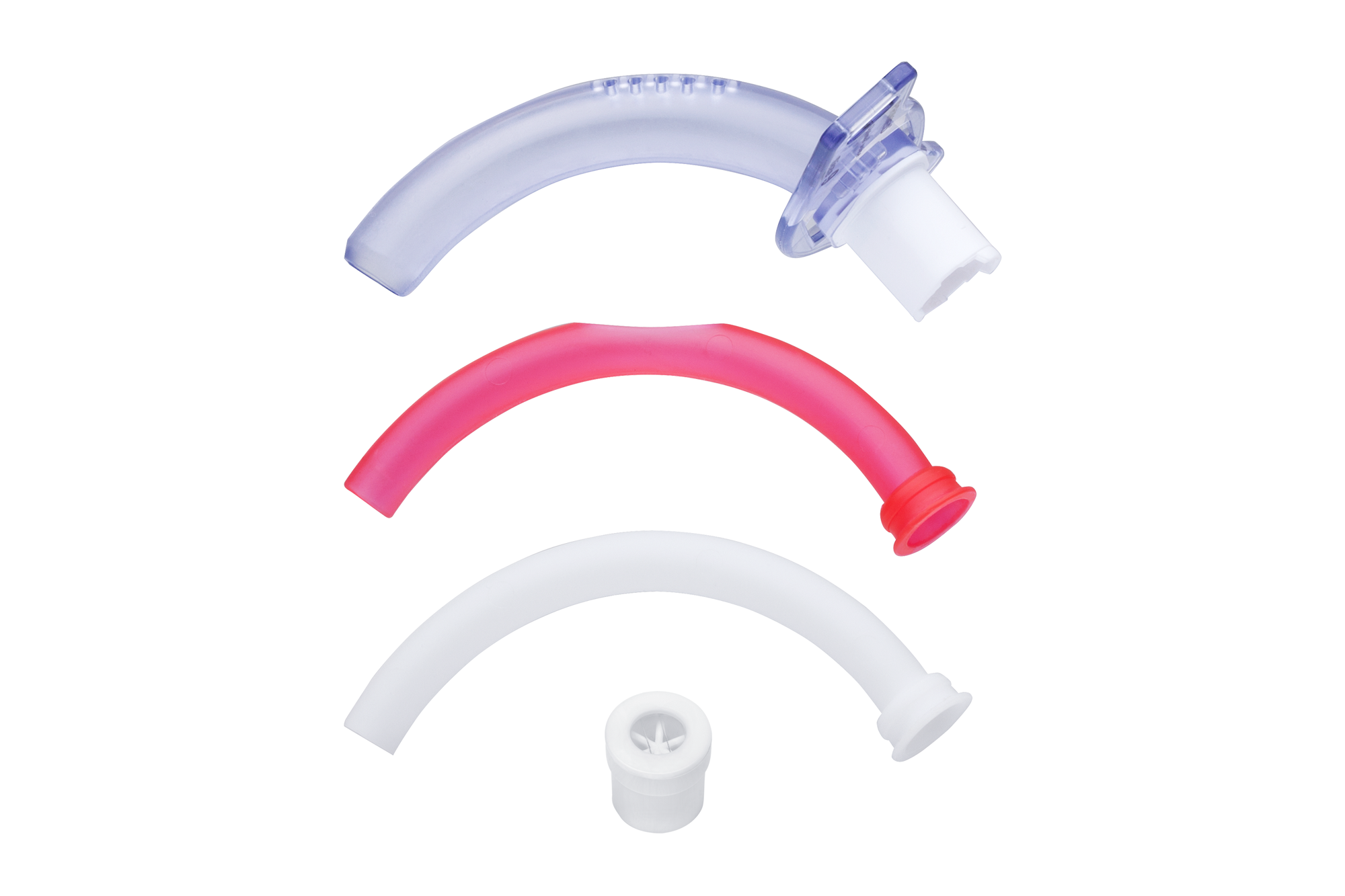

VOICE
Product features:
- Sieved outer cannula with 15 mm connector
- With inner cannula system
- 1 red, fenestrated inner cannula enables Phonation in conjunction with a speaking valve
- 1 white inner cannula made of radiopaque material for position control
- Including obturator, neck strap, decannulation cap and speaking valve
- Material: PVC, latex-free, DEHP-free
Indication
- Tracheostomy
- Phonation
- Radiatino/MRI

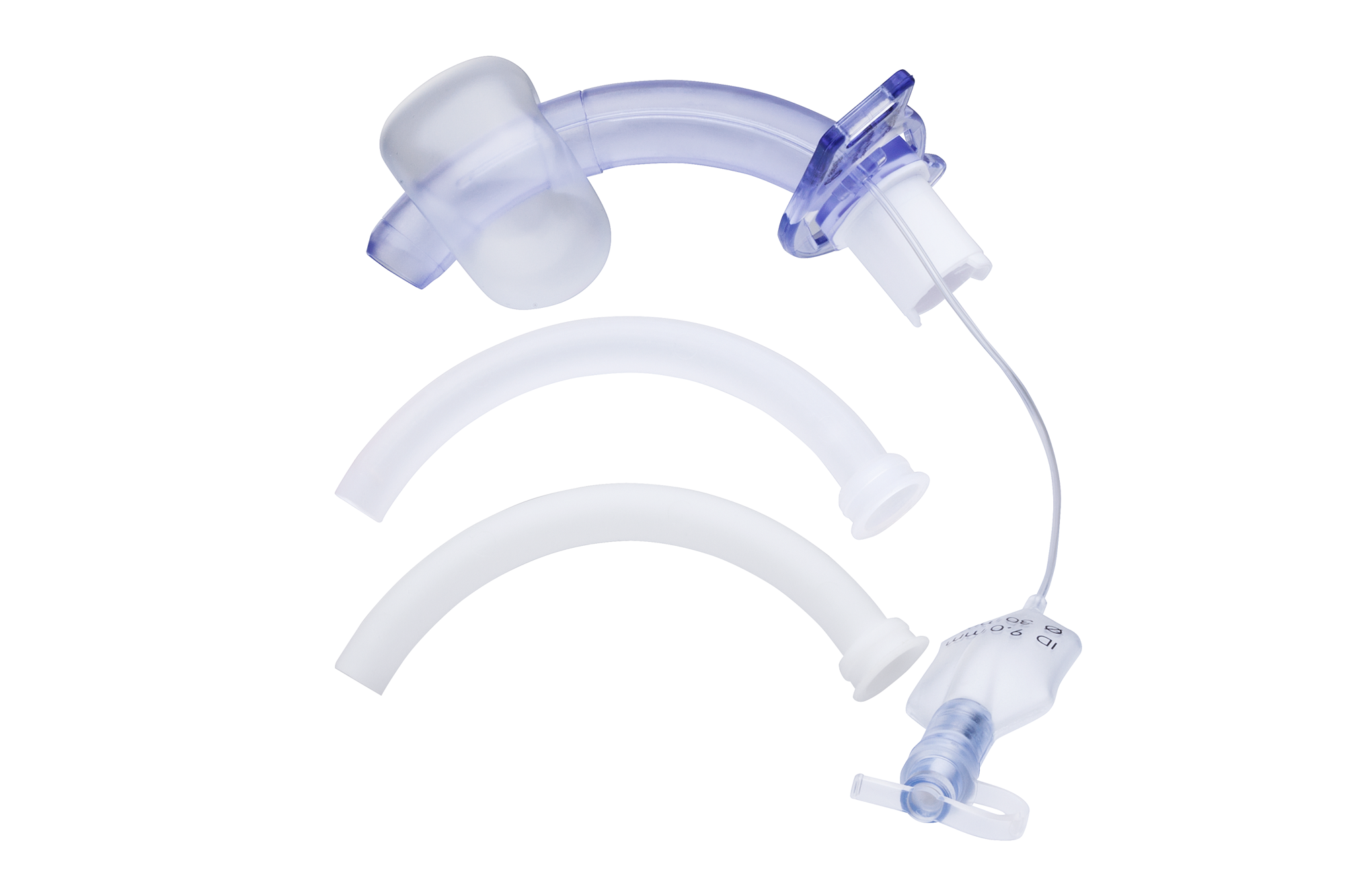

BASIC CUFF
Product features:
- Outer cannula with 15 mm connector and low-pressure cuff
- With inner cannula system
- 1 transparent inner cannula for improved secretion assessment
- 1 white inner cannula made of radiopaque material for position control
- Including obturator and neck strap
- Material: PVC, latex-free, DEHP-free
Indication
- Tracheostomy/Laryngectomy
- Aspiration
- Ventilation

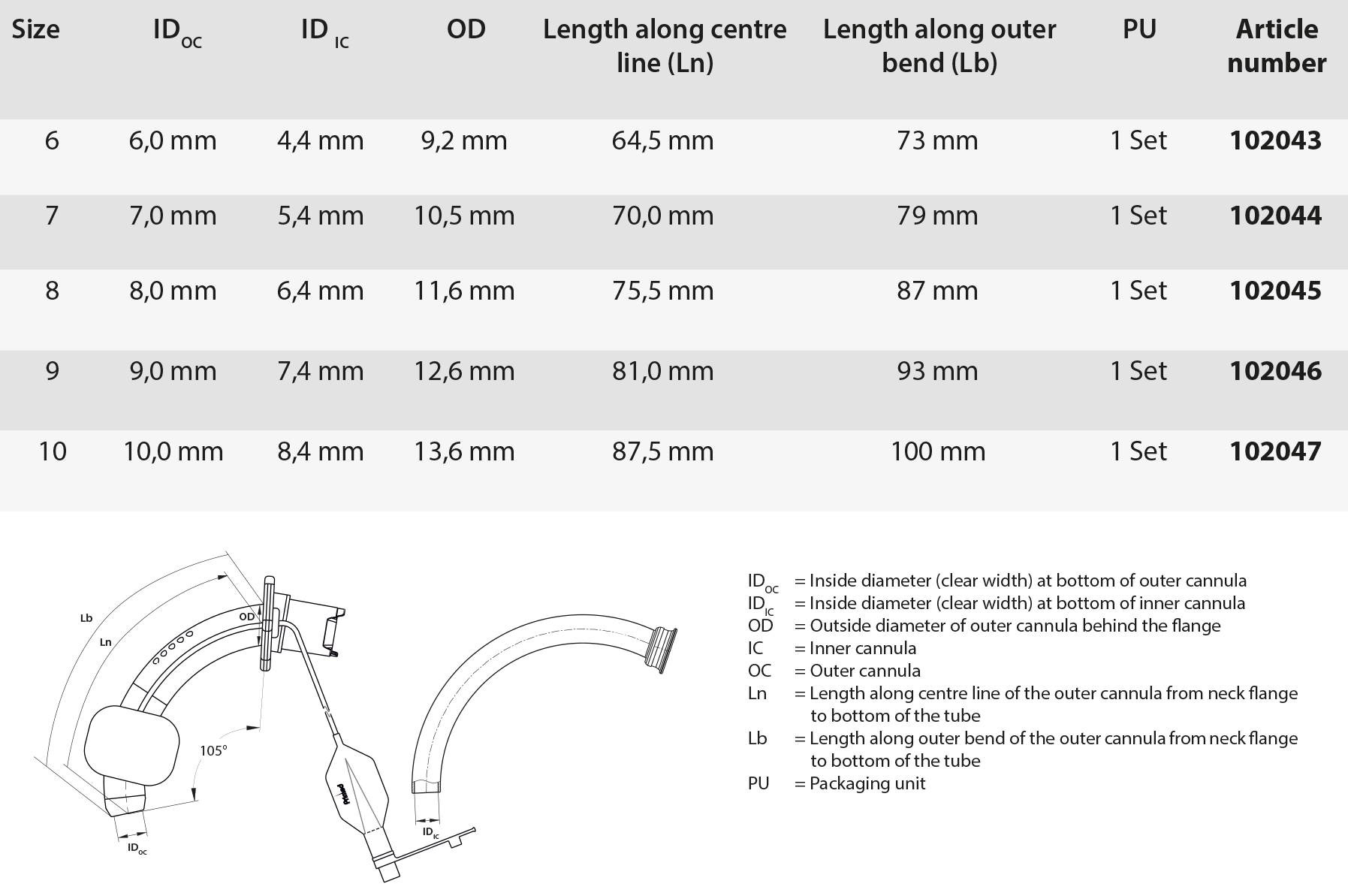

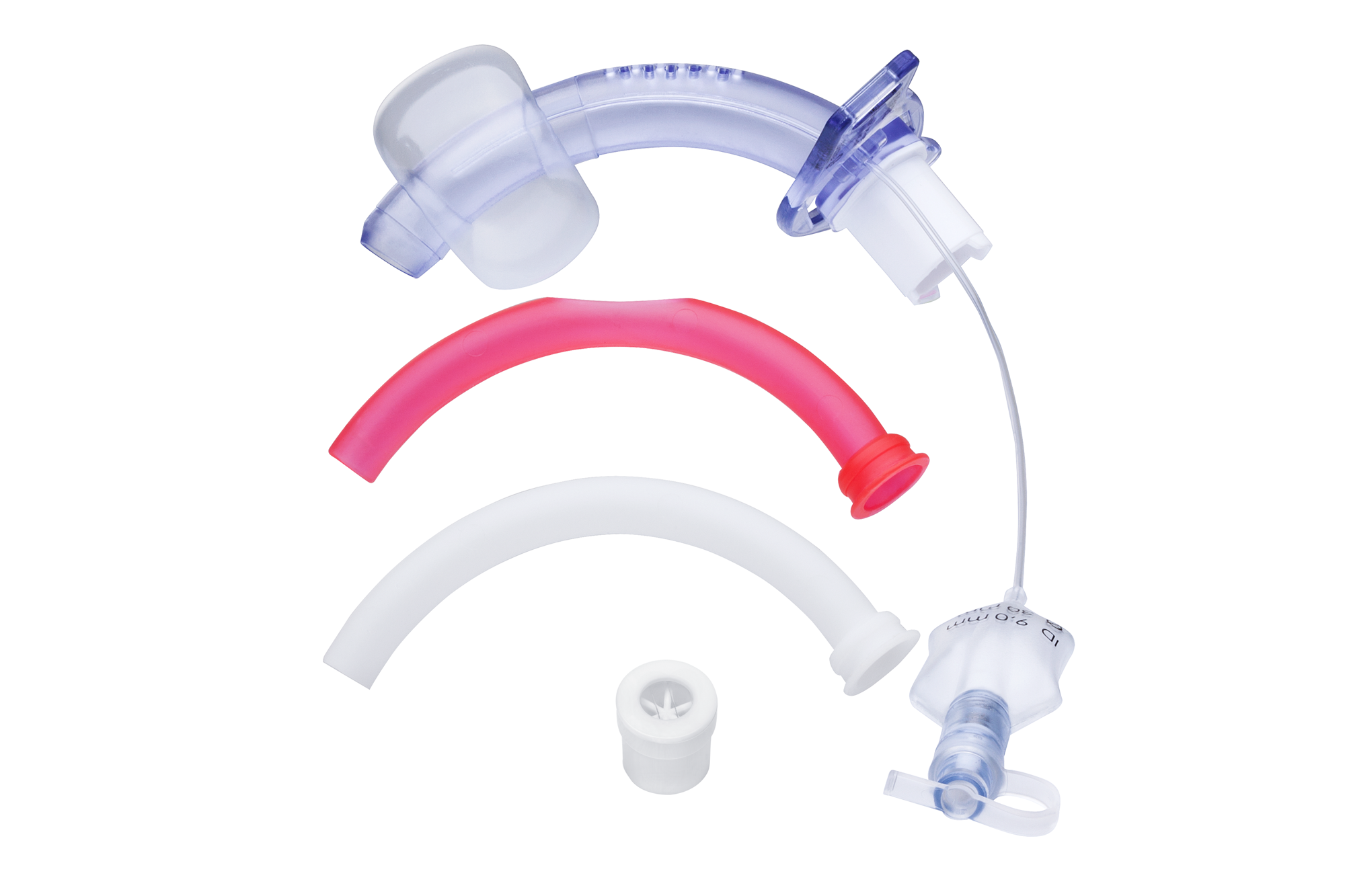

VOICE CUFF
Product features:
- Sieved outer cannula with 15 mm connector and low-pressure cuff
- With inner cannula system
- 1 red, fenestrated inner cannula enablesphonation in conjunction with a speaking valve
- 1 white inner cannula made of radiopaque material for position control
- Including obturator, neck strap, decannulation cap and speaking valve
- Material: PVC, latex-free, DEHP-free
Indication
- Tracheostomy
- Phonation
- Ventilation

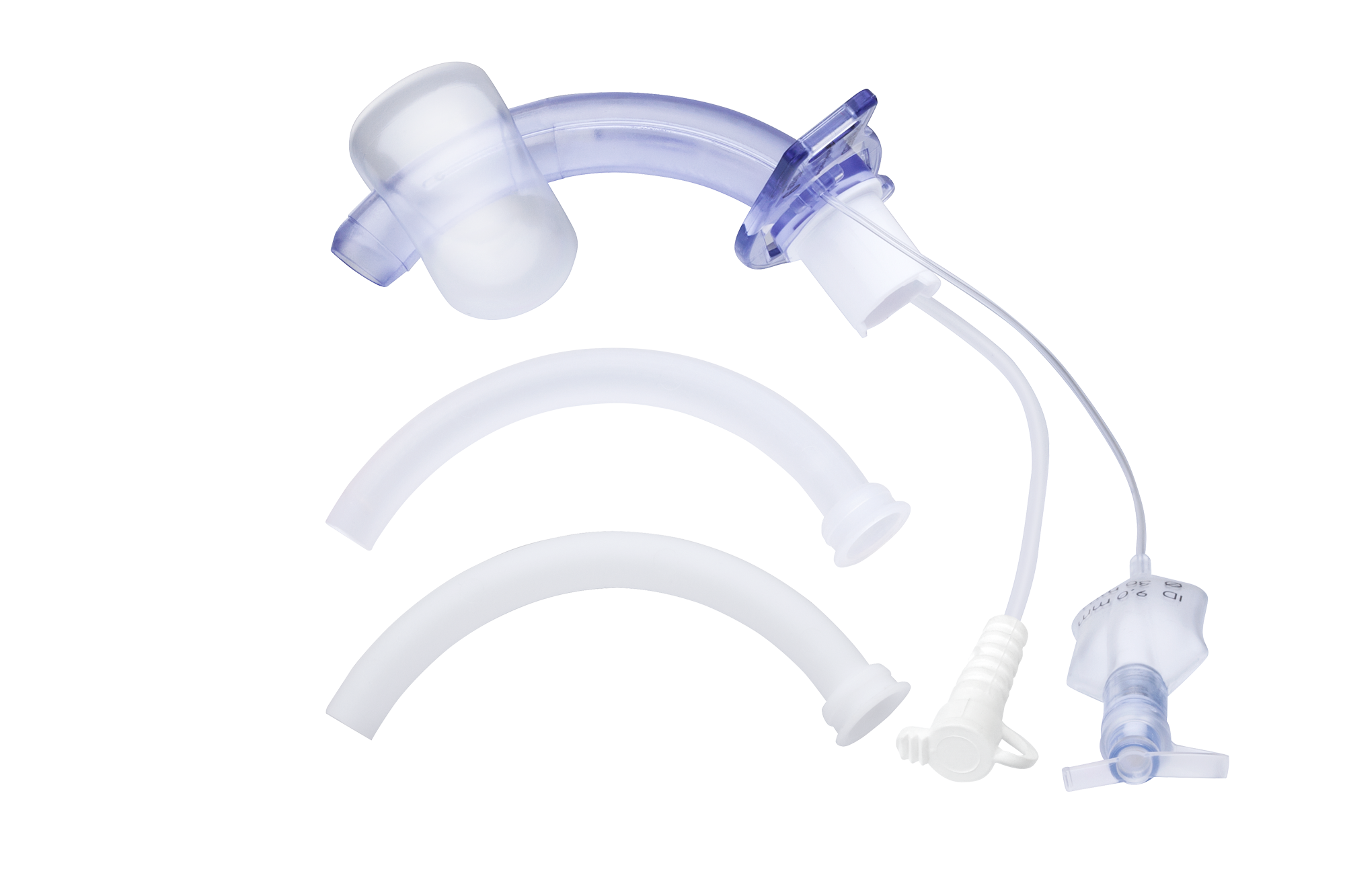

SUCTION
Product features:
- Outer cannula with 15 mm connector, low-pressure cuff and subglottic suction function (features an integrated suction line for on demand subglottic secretion suctioning above the cuff)
- With inner cannula system
- 1 transparent inner cannula for improved secretion assessment
- 1 white inner cannula made of radiopaque material for position control

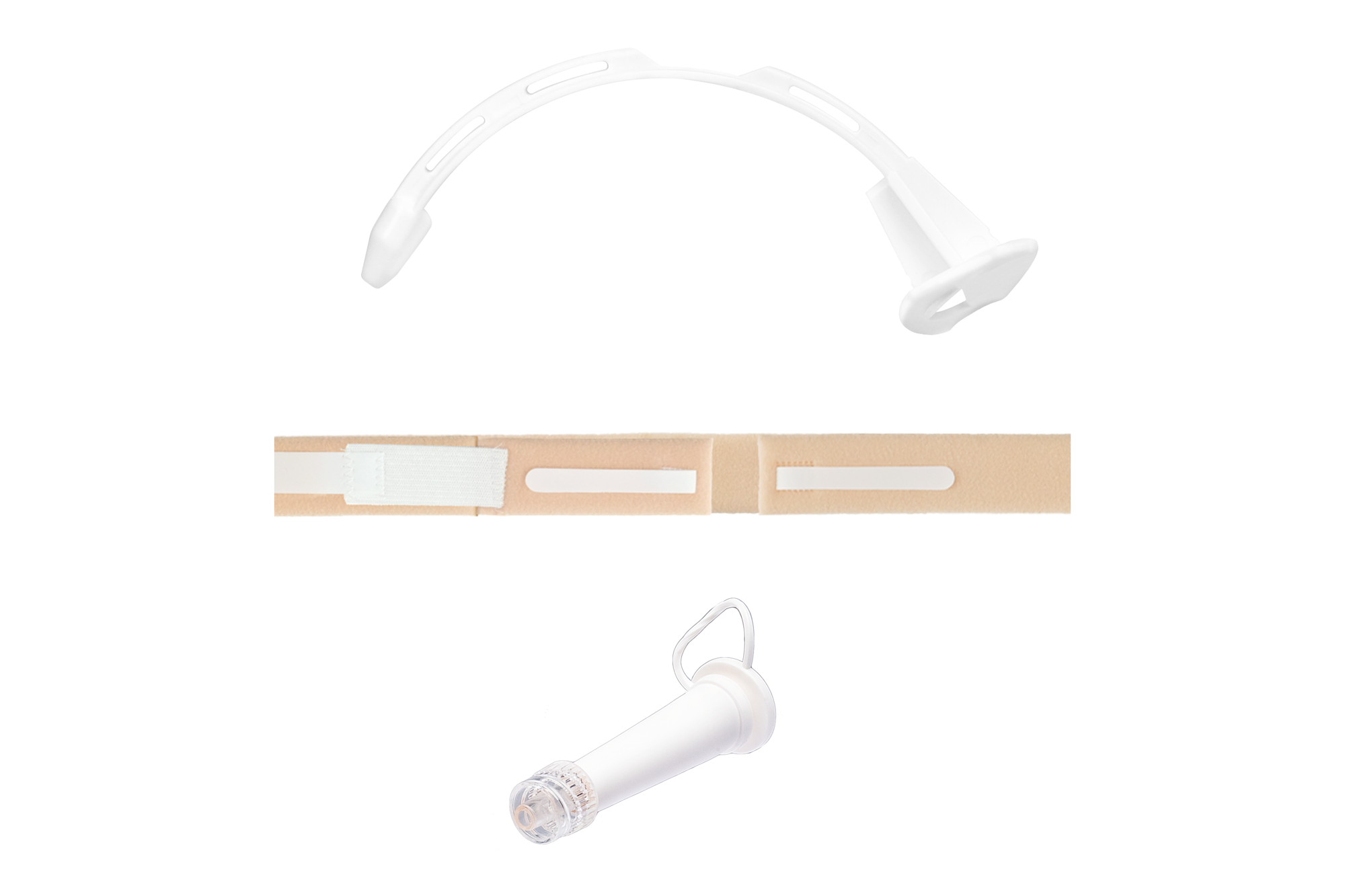

- Including Obturator, neck strap and funnel connector
- Material: PVC, latex-free, DEHP-free
Indication
- Tracheostomy/Laryngectomy
- Aspiration
- Ventilation

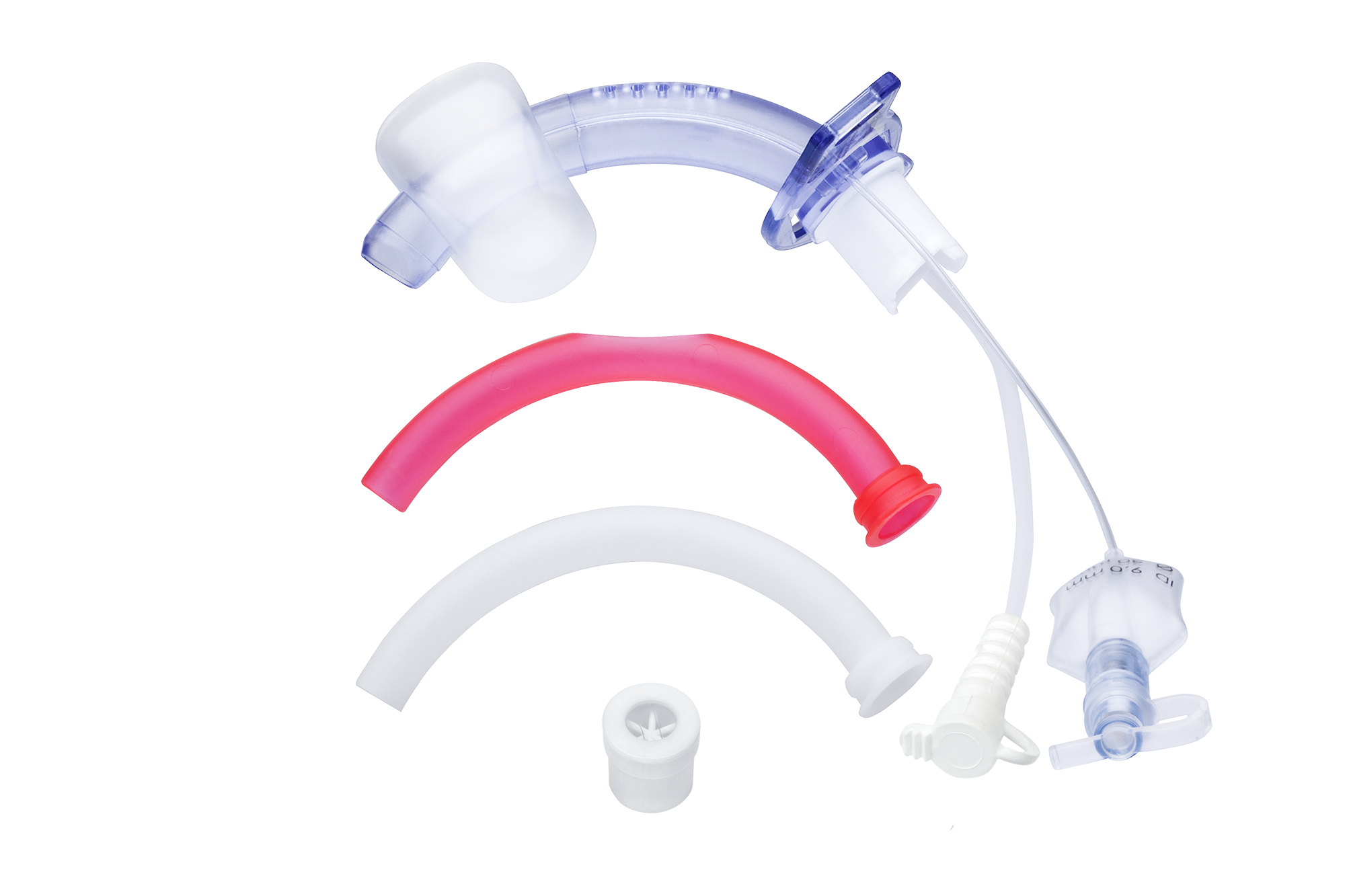

SUCTION VOICE
Product features:
- Sieved outer cannula with 15 mm connector, low-pressure cuff and subglottic suction function (features an integrated suction line for on demand subglottic secretion suctioning above the cuff)
- With inner cannula system
- 1 red, fenestrated inner cannula enables phonation in conjunction with a speaking valve
- 1 white inner cannula made of radiopaque material for position control

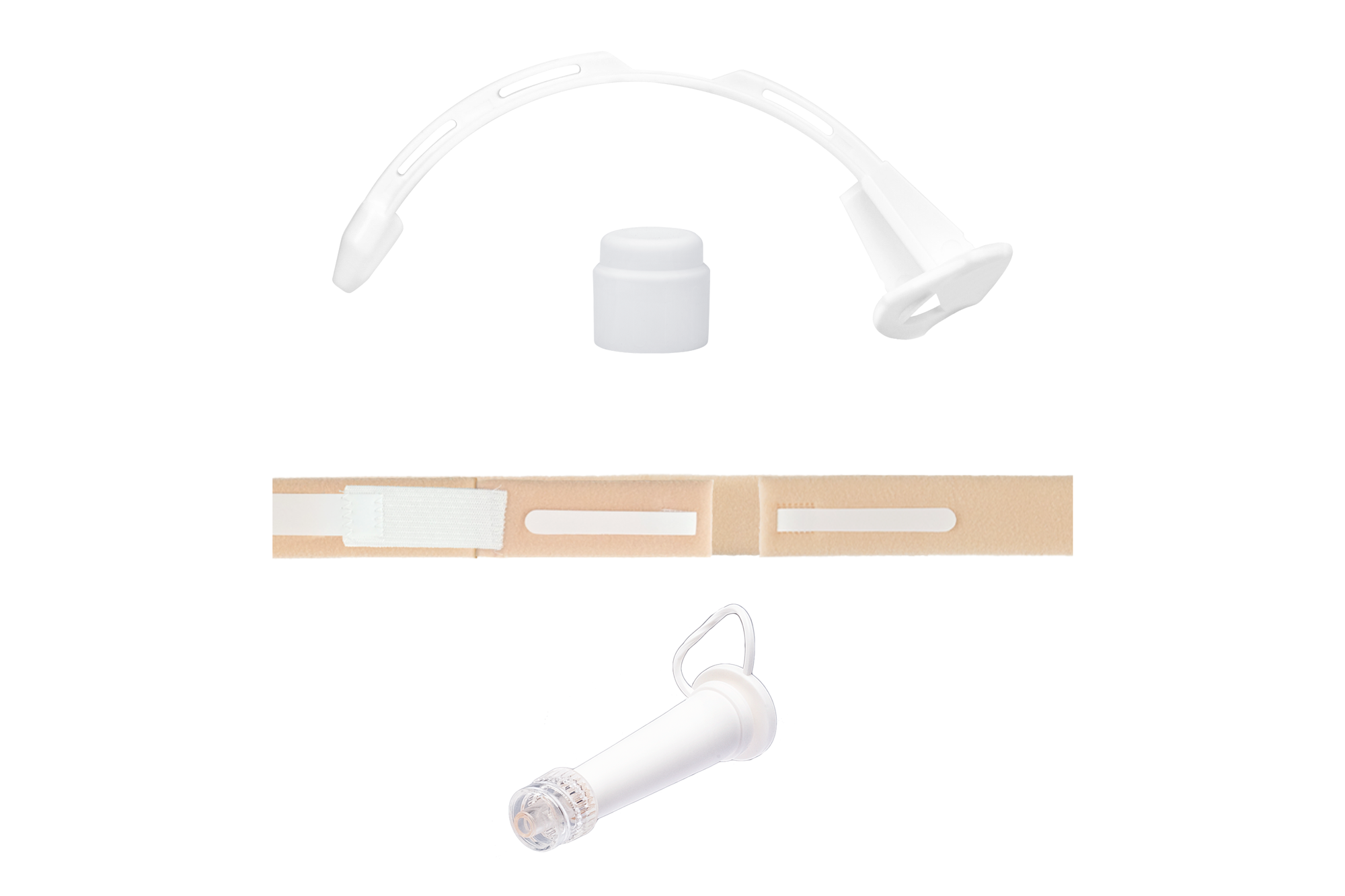

- Including obturator, neck strap, decannulation cap, speaking valve and funnel connector
- Material: PVC, latex-free, DEHP-free
Indication
- Tracheostomy
- Phonation
- Ventilation

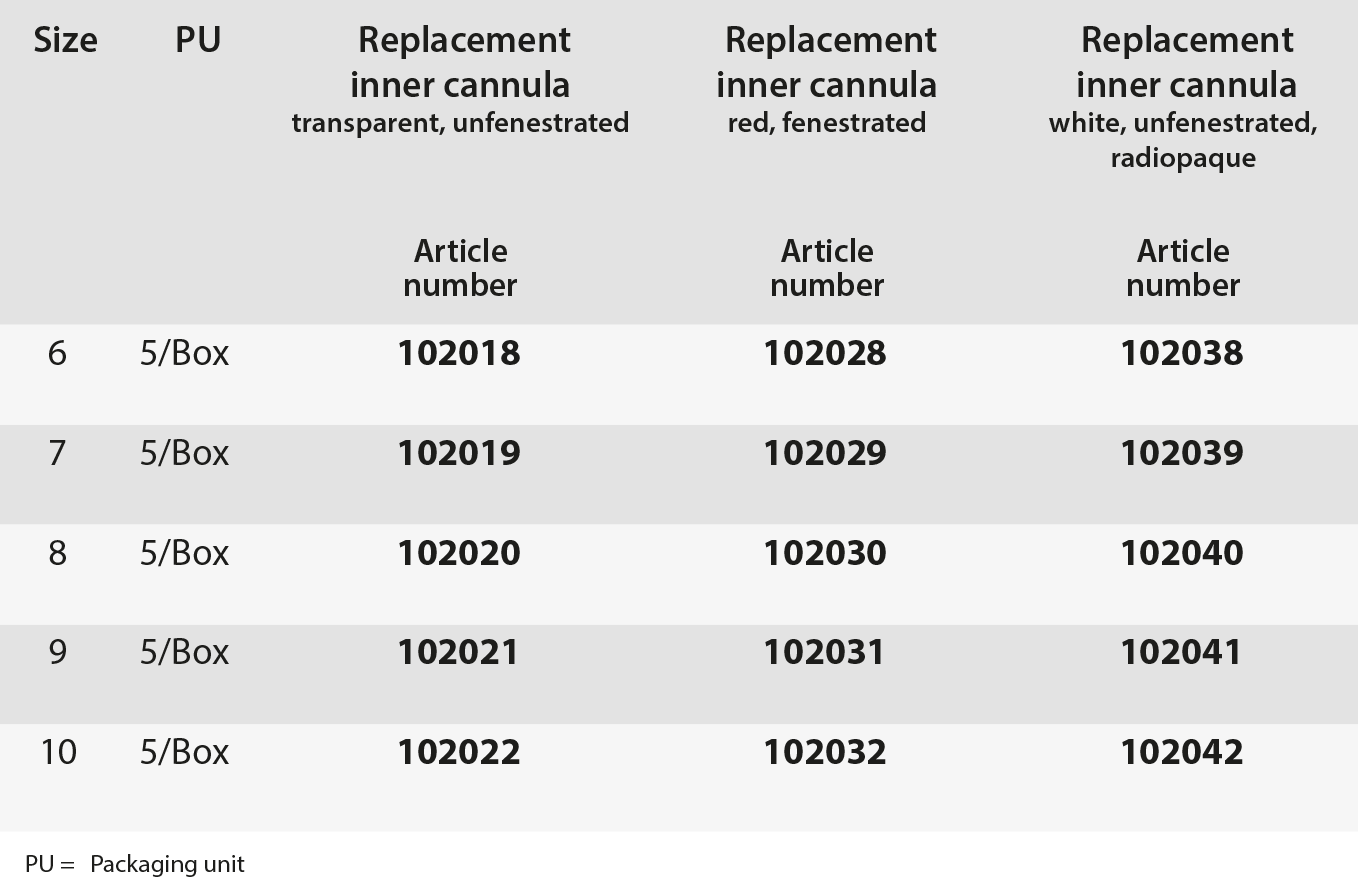

Replacement inner cannulas

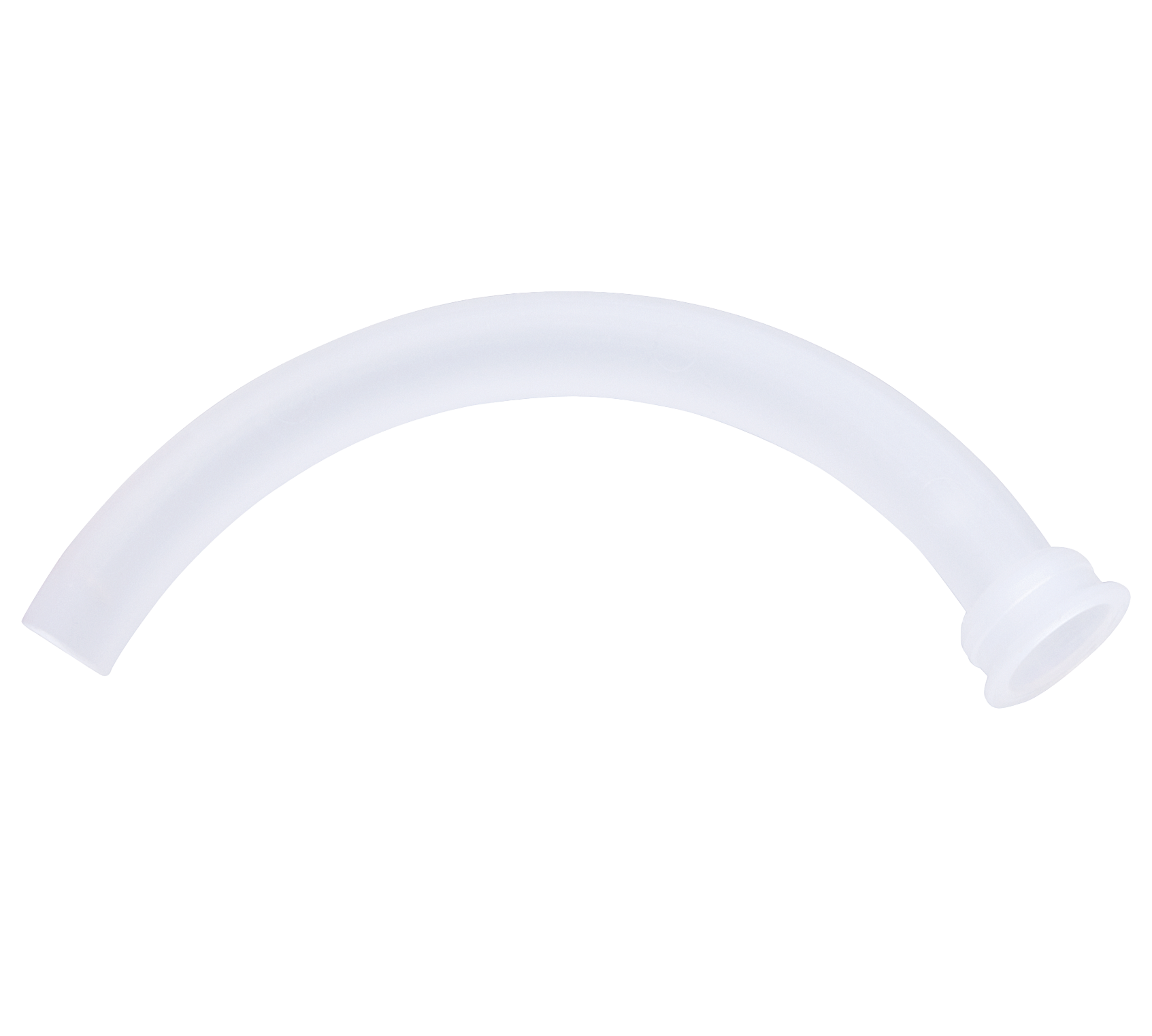

This inner cannula is unfenestrated and transparent for improved secretion assessment.

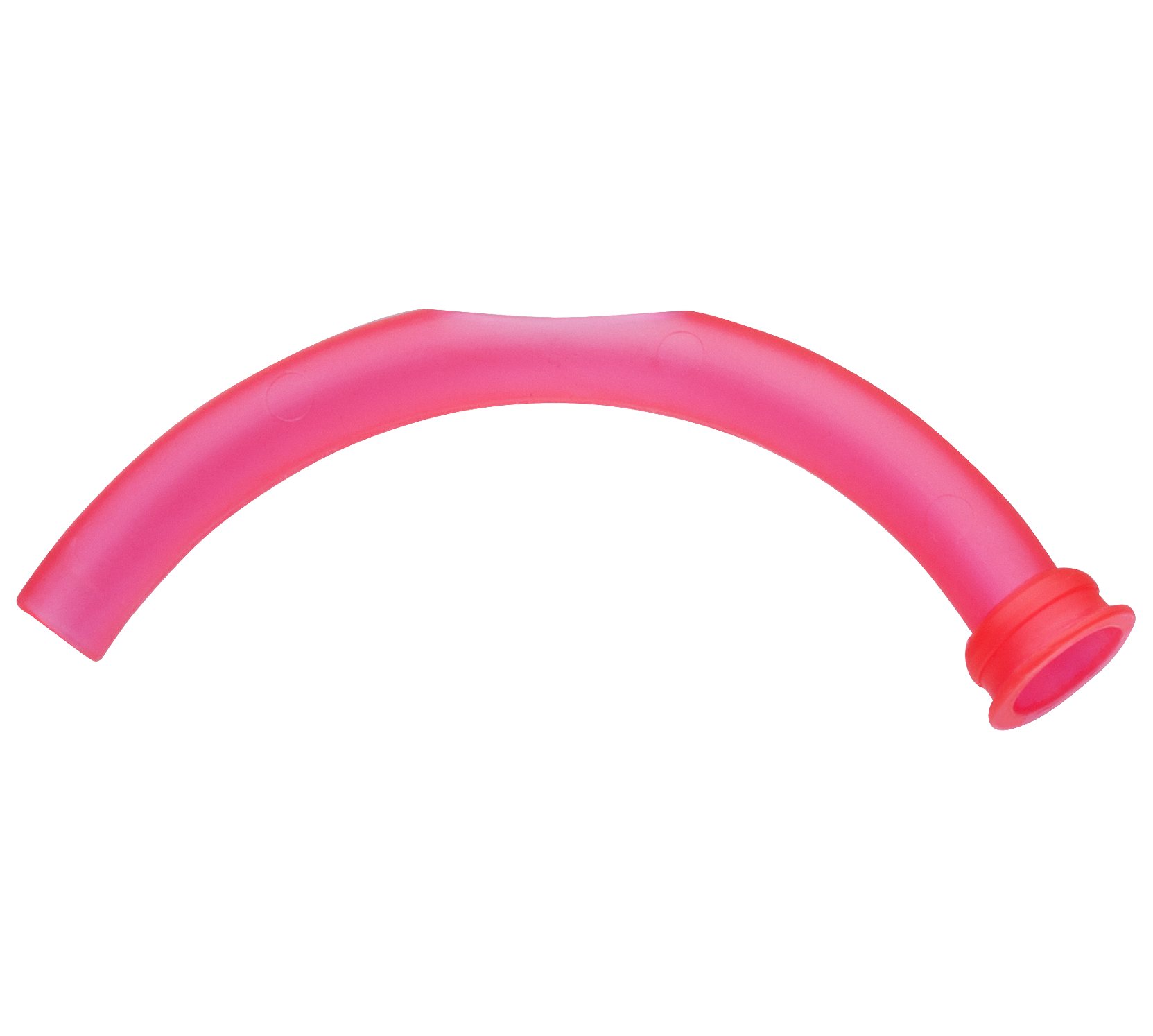

The red inner cannula is fenestrated and enables phonation in conjunction with a speaking valve.

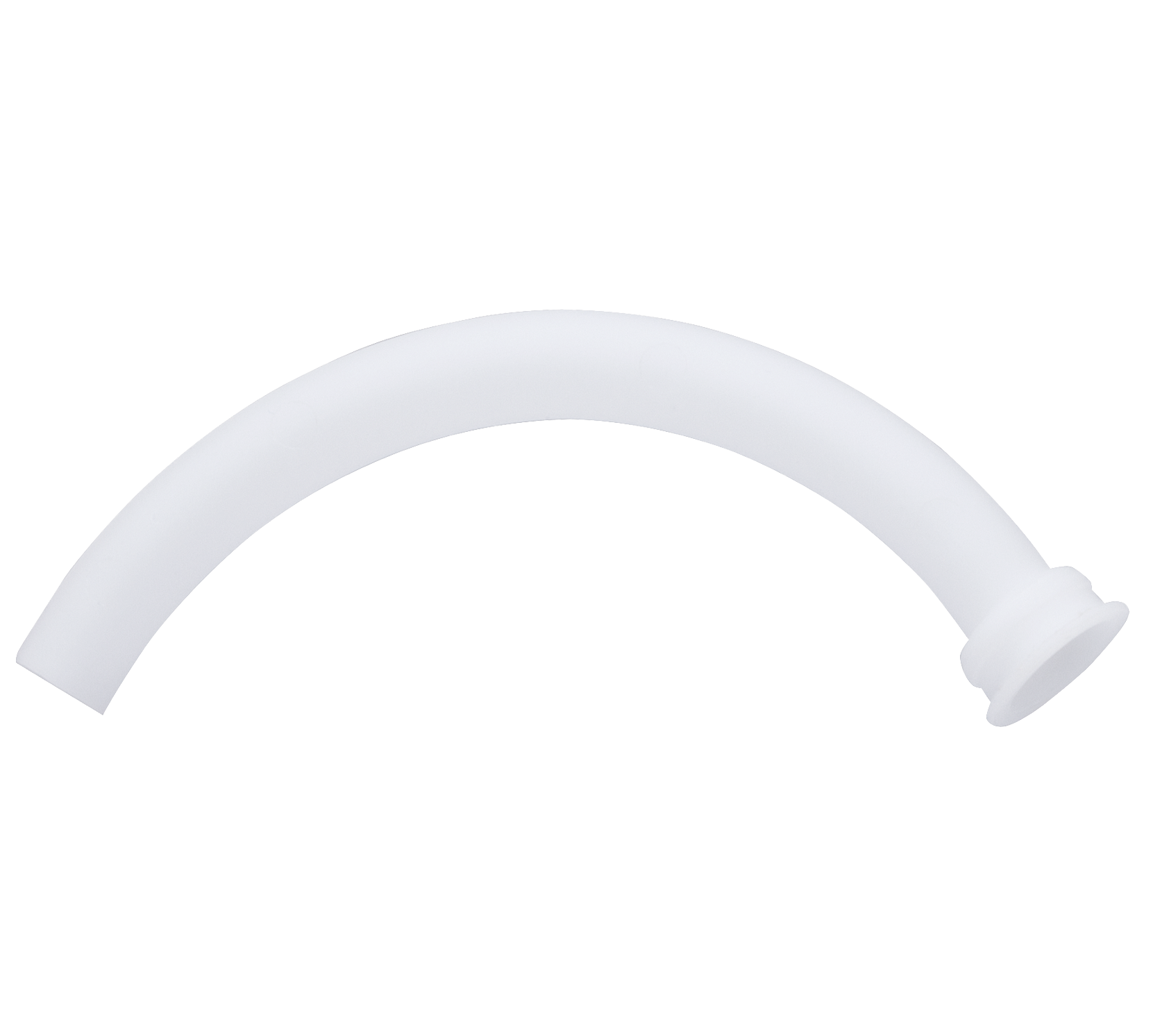

The white inner cannula is unfenestrated and made of radiopaque material for position control.

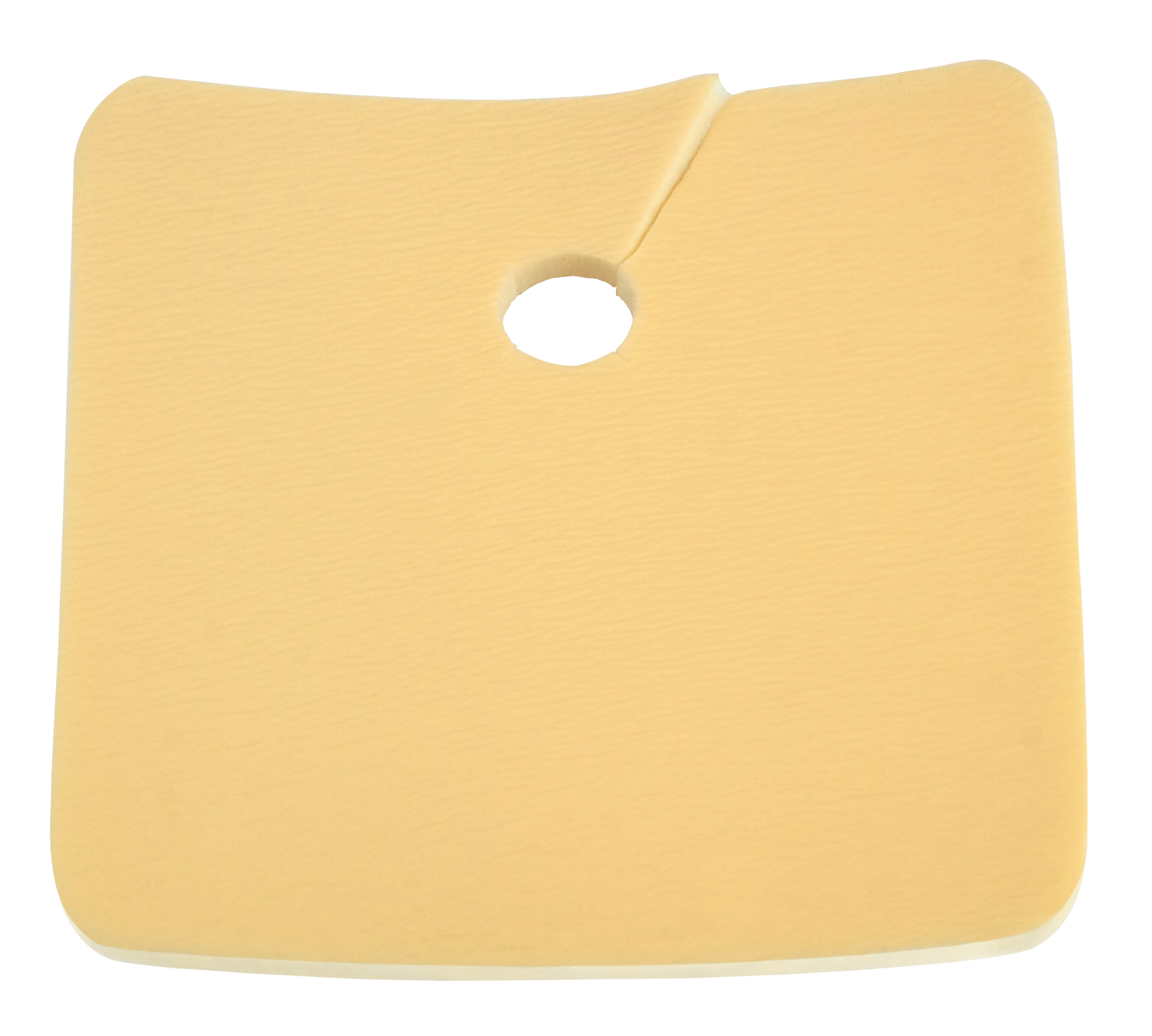

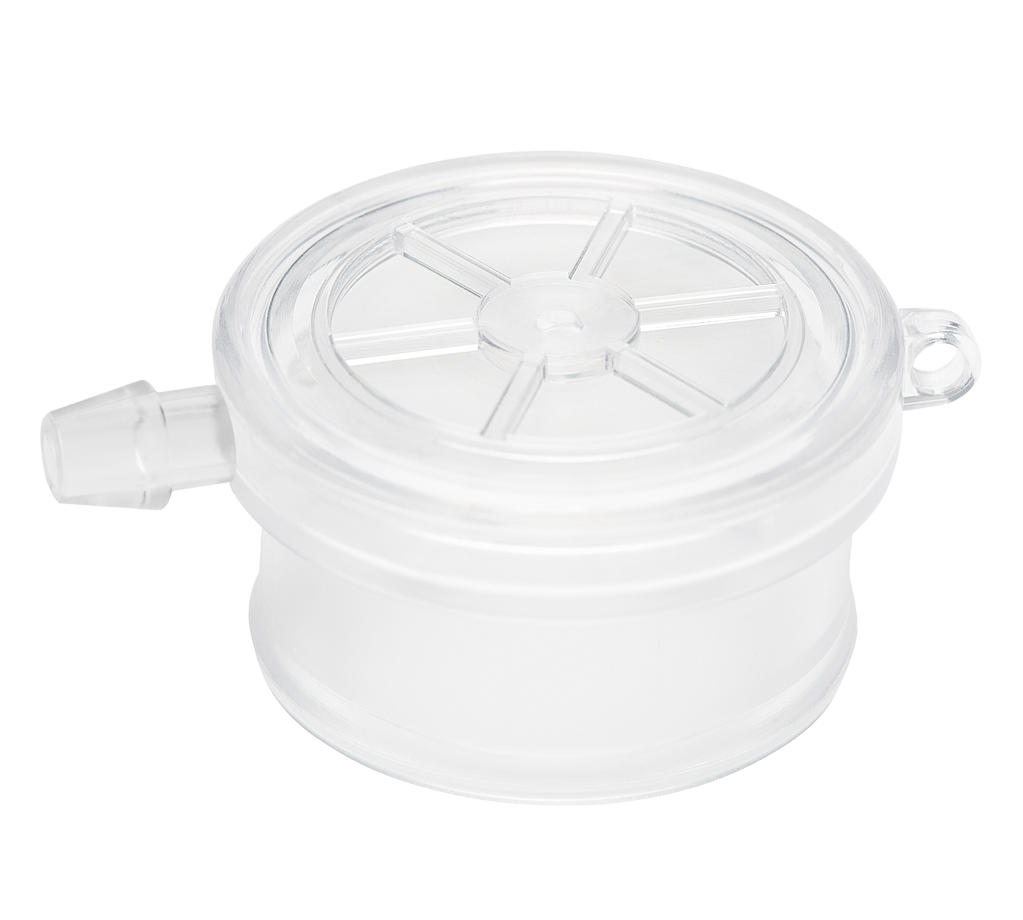

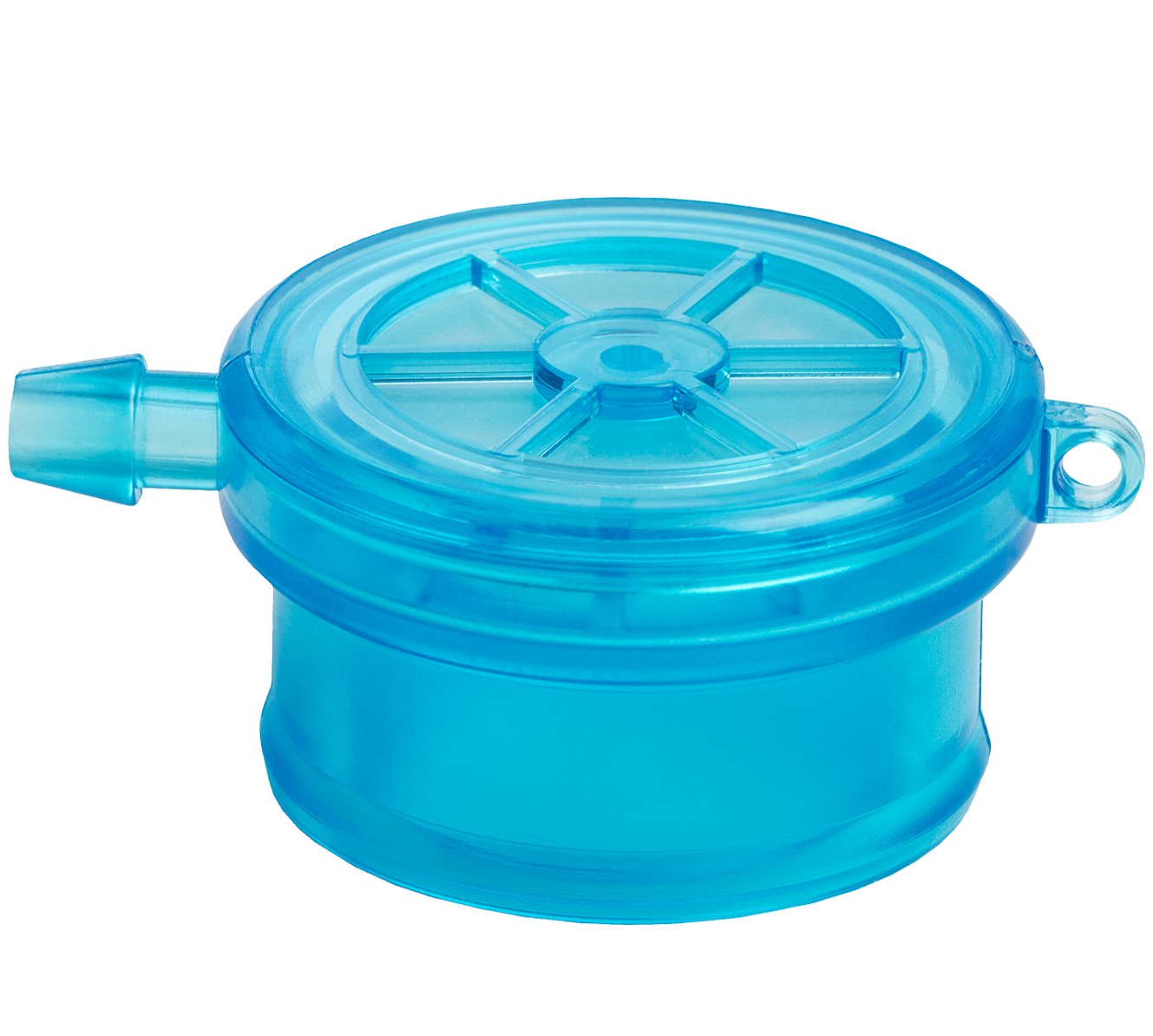

OPTIONAL ACCESSORIES
