HEAT & MOISTURE EXCHANGER

Accessories for pulmonary rehabilitation are specially designed for the needs of patients both in hospital and rehabilitation care and receiving nursing care at home.

Patients are either completely or partially incapable of breathing via their larynx, mouth and nose following a laryngectomy or tracheostomy. This is also accompanied by a loss of function of the upper respiratory tract. The accessories specially developed for laryngectomized and tracheostomized patients take on these functions, achieving a considerable improvement in the quality of life.

Heat and moisture exchangers (HMEs) replace certain nasal functions by moistening, warming and filtering breathing air and promoting the pulmonary recovery process.

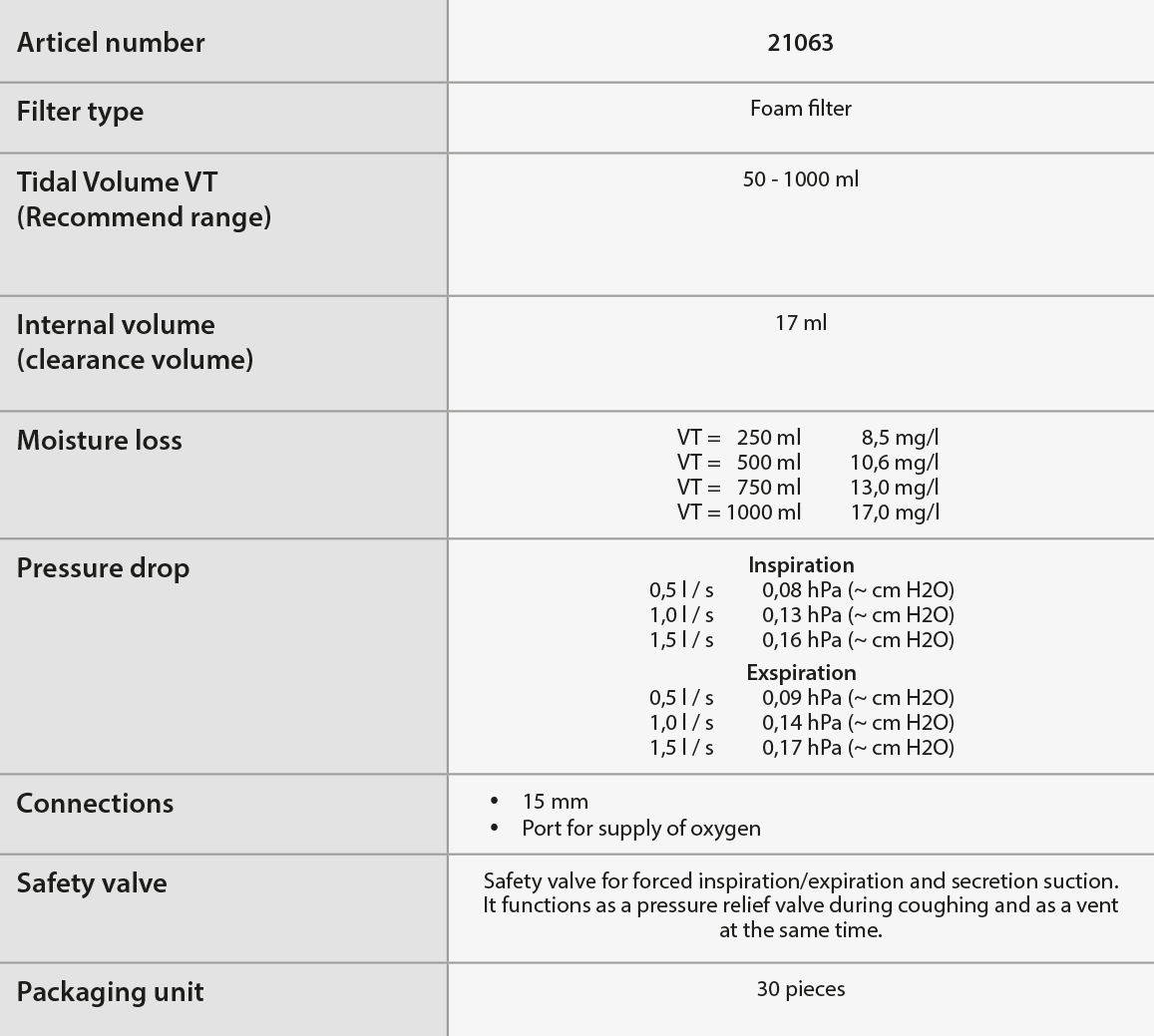

PRIMEDIAIR®-VO2

PRIMEDIAIR®-VO2

Product features:

  • Effective filtration, humidification and heating of inhaled air (ensures a well-functioning mucous cilia system for infection prevention)
  • Low breathing resistance thanks to large surface
  • With foam filter
  • Standardized 15 mm opening for attachment to a tracheostomy tube or endotracheal tube with 15 mm connection
  • Integrated oxygen supply port
  • With self-opening safety/ suction port in the lid which can be used for suctioning and in case of coughing or blockage acts as a relief valve

Indication

  • Spontaneausly breathing intubated, tracheostomized and laryngectomized patients

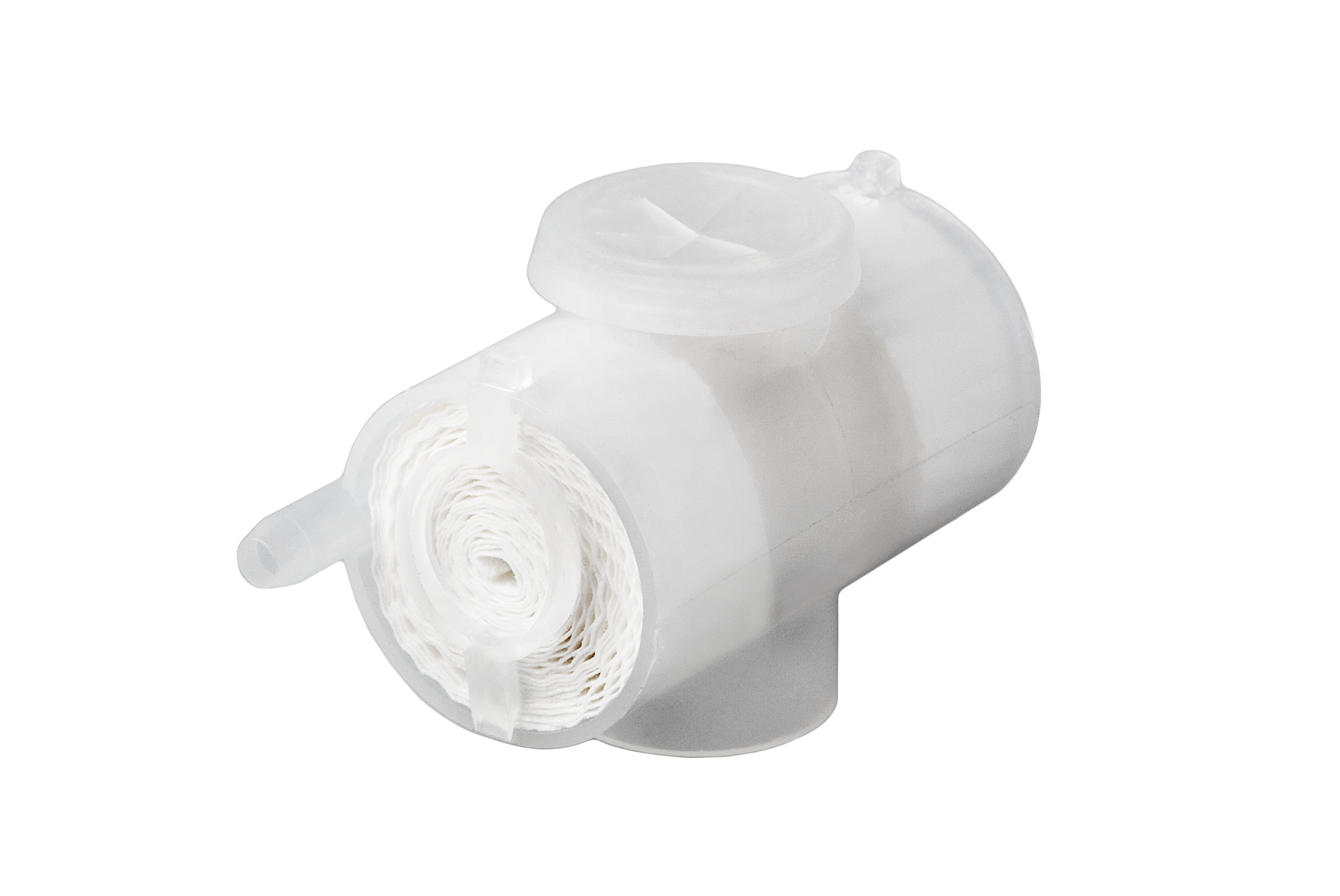

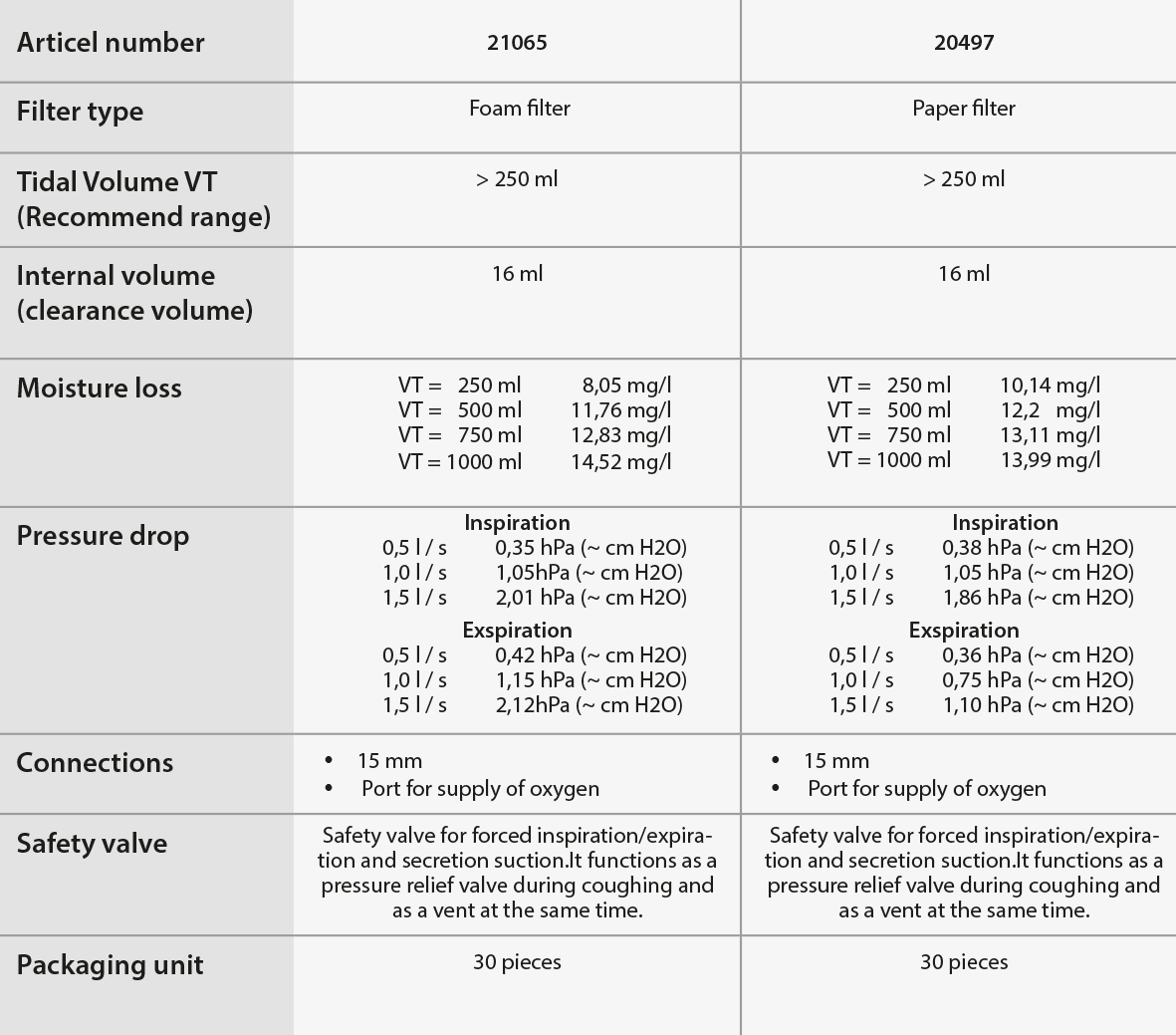

PRIMEDIAIR®-DUAL

PRIMEDIAIR®-DUAL

with foam filter

with paper filter

Product features:

  • Effective filtration, humidification and heating of inhaled air (ensures a well-functioning mucous cilia system for infection prevention)
  • Low breathing resistance thanks to large surface
  • With 15 mm connector for attachment to a tracheostomy tube or endotracheal tube with 15 mm connection
  • Integrated oxygen supply port
  • Integrated self-opening safety/ suction port in the lid which can be used for suctioning and in case of coughing or blockage acts as a relief valve
  • Available with two different filter media:
    – with hygroscopic foam filter
    – with hygroscopic microwell paper

Indication

  • Spontaneously breathing intubated, tracheostomized and laryngectomized patients

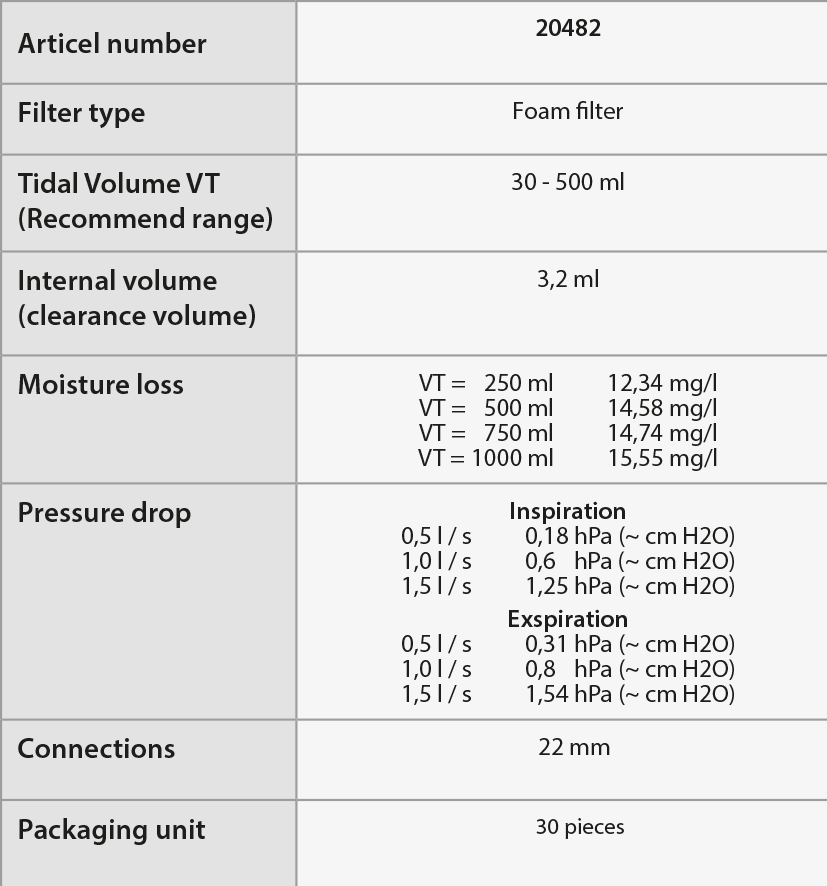

PRIMEDIAIR®-KAS

PRIMEDIAIR®-KAS WÄRME- & FEUCHTIGKEITS-AUSTAUSCHER (HME)

Product features:

  • Effective filtration, humidification and heating of inhaled air (ensures a well-functioning mucous cilia system for infection prevention)
  • Particularly fla and unobstrusive design
  • With foam filter
  • With 22 mm connector for attachment to a tracheostomy tube with 22 mm connection, a stoma button (Typ III) or a tracheostoma patch (PRIMEDISTRIP®)

Indication

  • Spontaneously breathing tracheostomized and laryngectomized patients

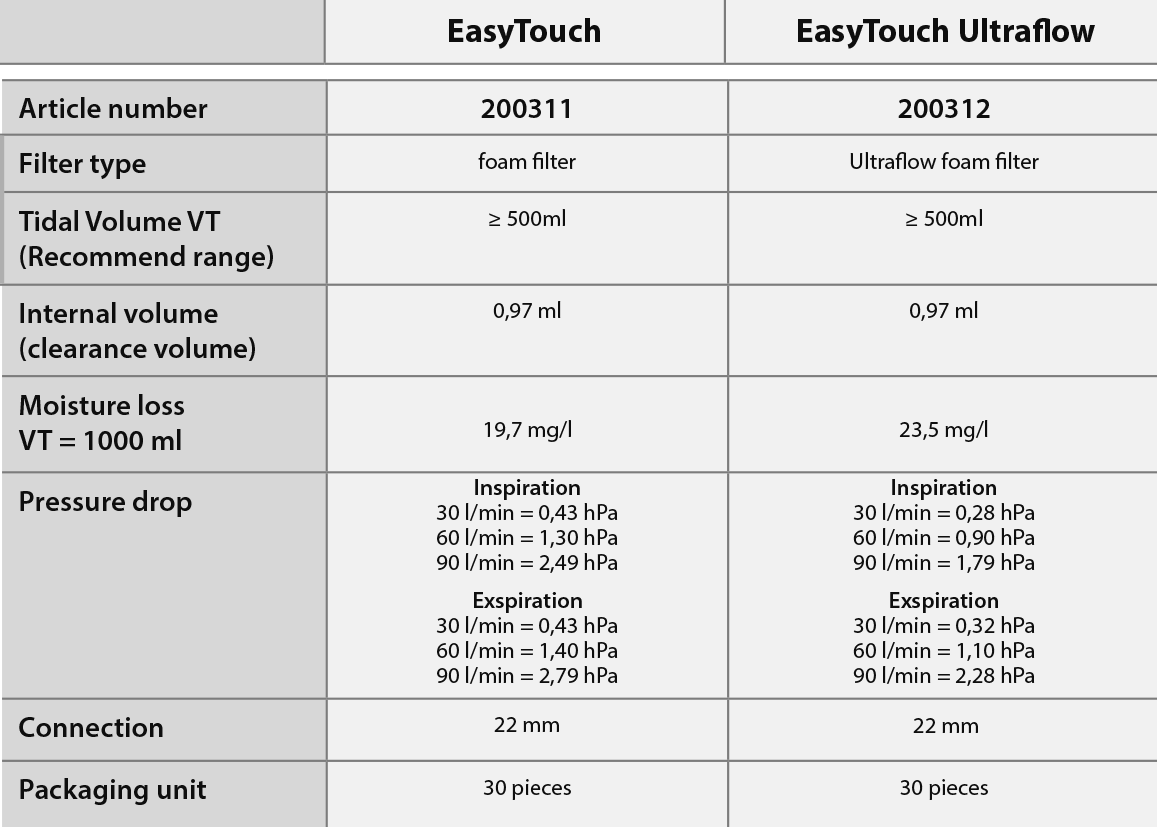

EasyTouch/ EasyTouch Ultraflow

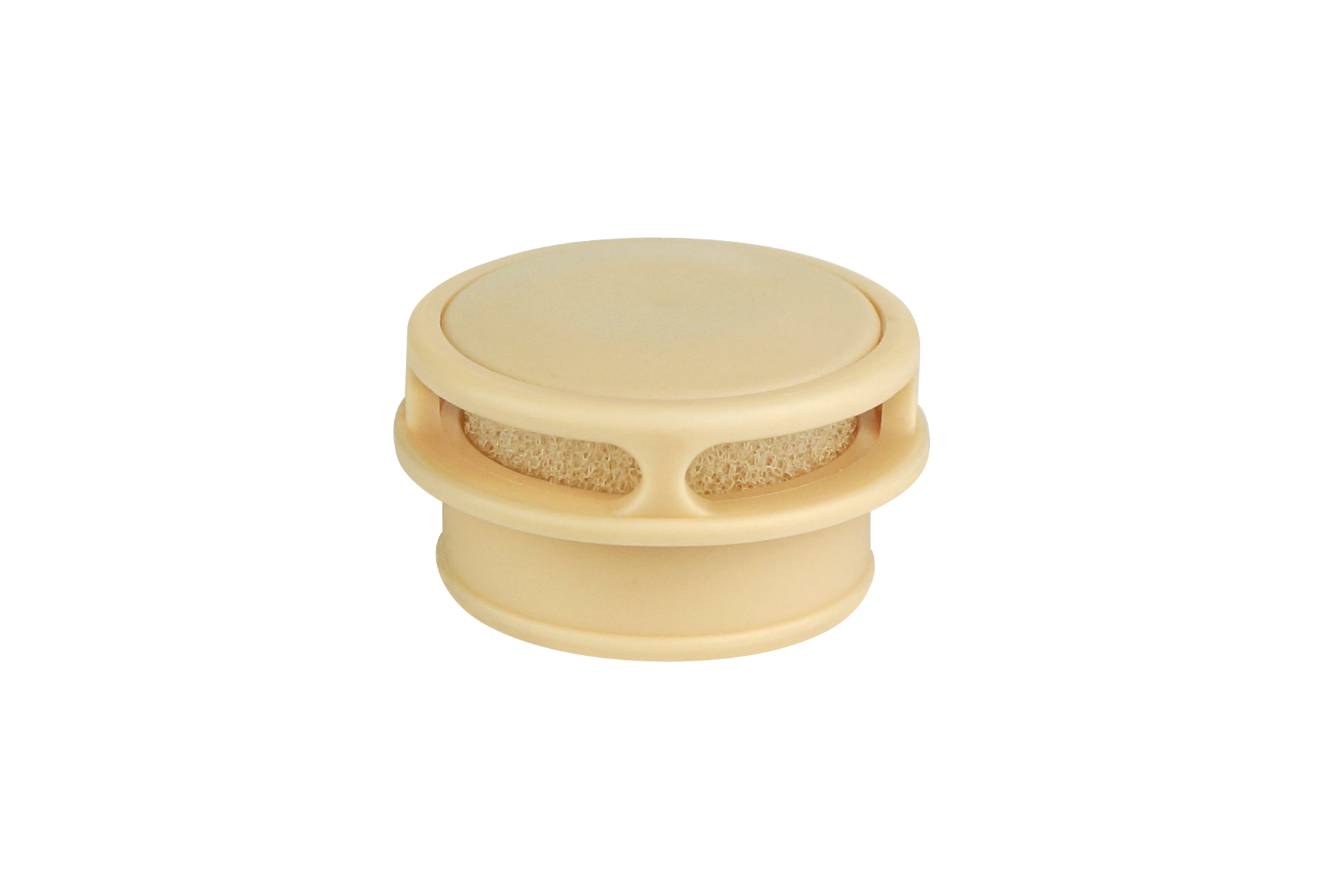

EasyTouch

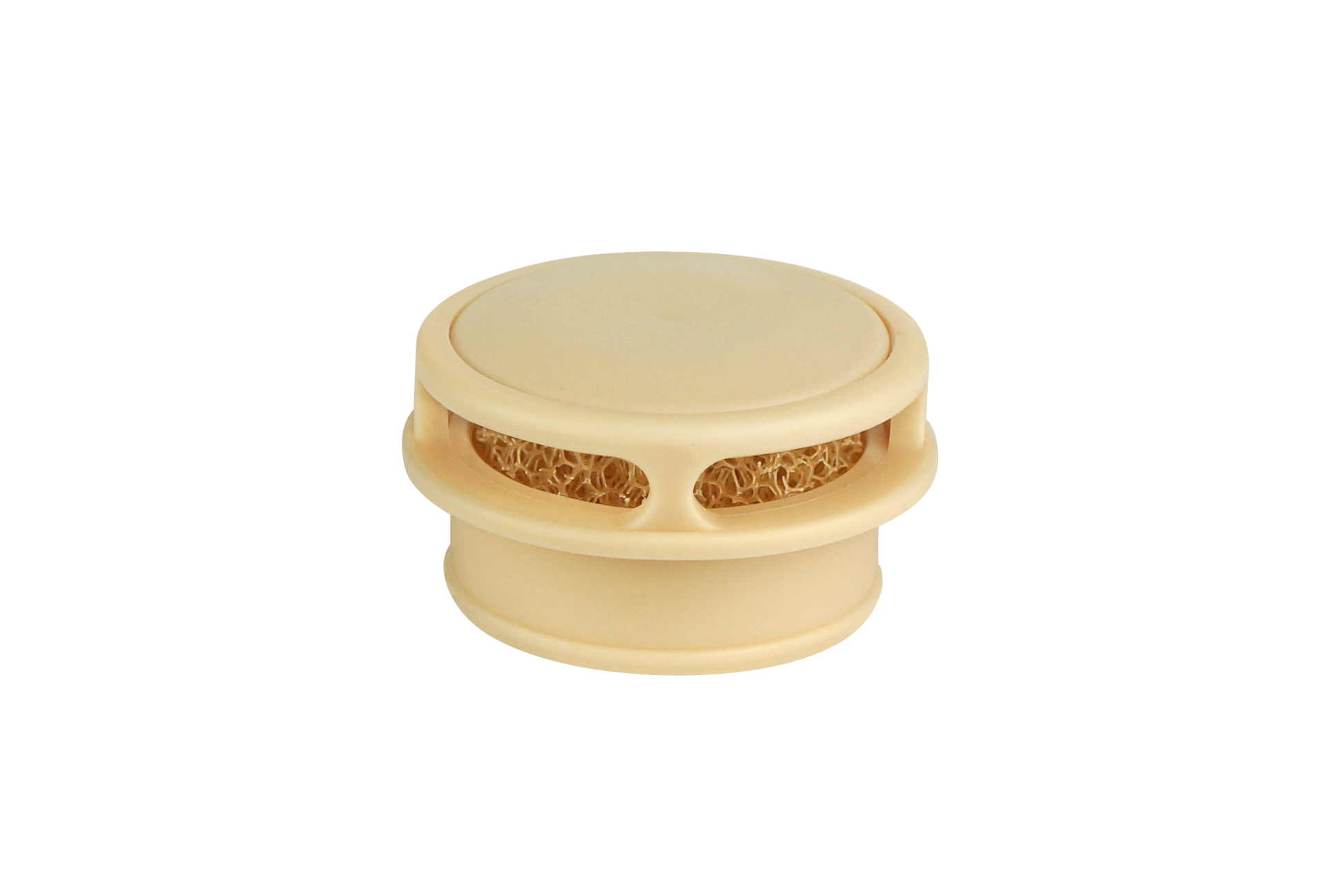

EasyTouch Ultraflow

Product features:

  • Effective filtration, humidification and heating of inhaled air (ensures a well-functioning mucous cilia system for infection prevention)
  • With speech button (to speak, press the speech button down gently using one finger, sealing off the system to allow phonation)
  • Unobtrusive design: flat and skin-colored
  • With 22 mm connector for attachment to a tracheostomy or laryngectomy tube with 22 mm connection, a stoma button (Type III) or a tracheostoma
    patch (PRIMEDISTRIP®)
  • Foam filter available in two material versions:
    EasyTouch features a normal foam filter
    EasyTouch Ultraflow is equipped with an Ultra-Flow foam filter with a particularly low resistance to inspiration

Indication

  • Laryngectomized patients (with voice prosthesis)/ Tracheostomized patients with intact larynx

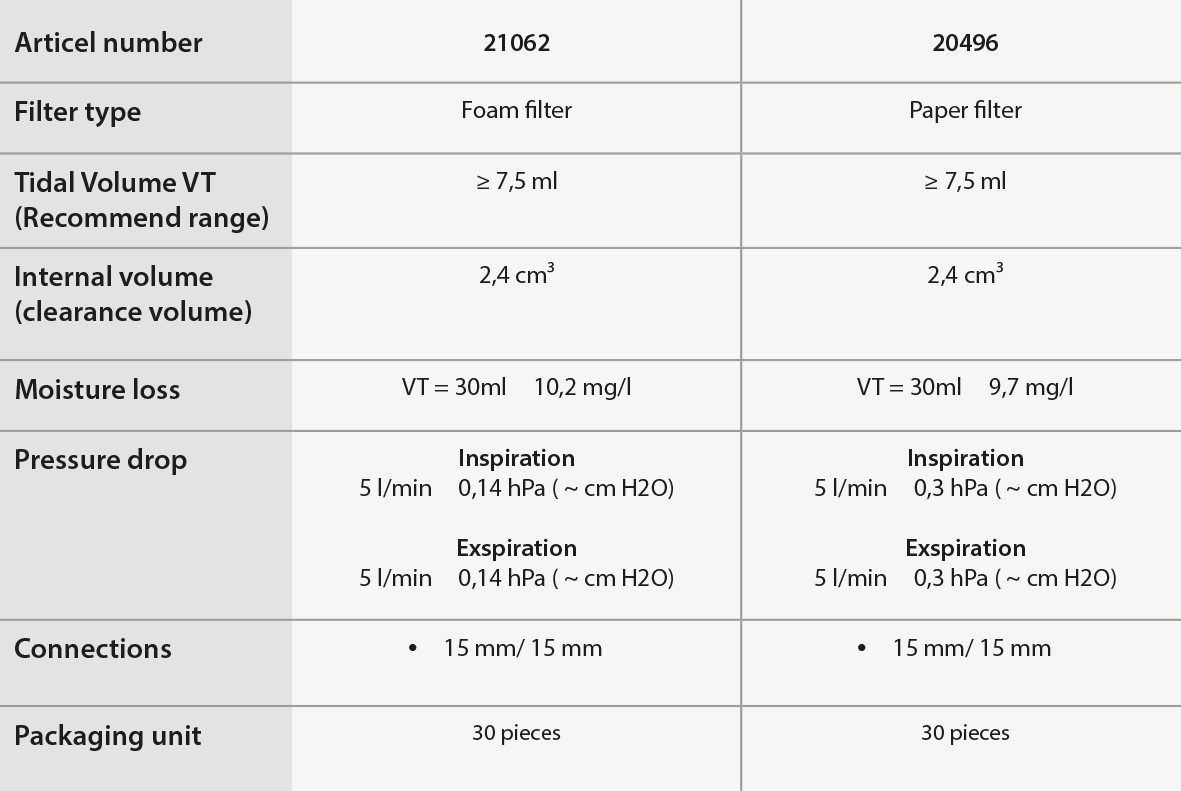

PRIMEDIAIR®-NATAL

PRIMEDIAIR®-NATAL

with foam filter

PRIMEDIAIR®-NATAL

with paper filter

Product features:

  • Effective filtration, humidification and heating of inhaled air (ensures a well-functioning mucous cilia system for infection prevention)
  • Specially designed for the tidal volume of neonates and children
  • With 15 mm connector for attachment to a tracheostomy tube with 15 mm connection
  • Features a removable oxygen ring (attachment with an oxygen (O2-port) connection).
  • Available with two different filter media:
    – with hygroscopic blue foam filter
    – with hygroscopic white microwell paper

Indication

  • Spontaneously breathing  tracheostomized neonates and children
